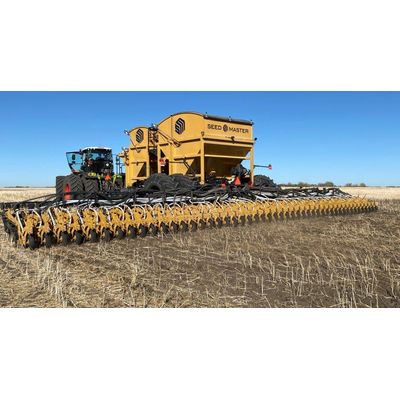

Ultra - Model SR -Single Rank Toolbar
SeedMaster’s revolutionary Ultra SR is the first single rank precision seeding tool on the market. This advanced, fully integrated seeding system combines the best in SeedMaster technology: their proven, dual-knife opener and UltraPro ll metering. At 60 feet wide with 735 bushels of total capacity, the Ultra SR increases maneuverability and contours to the land to ensure precise seed and fertilizer placement.
The single rank toolbar is made possible with SeedMaster’s innovative Residue Management System. The system uses rotating spoked wheels to clear residue to the side to allow the openers to move through heavy trash. Tough rubber sections interconnect the spoked wheels and provide the 60 foot single rank with 5 sections of residue wheels.
The SeedMaster Research Farm conducted a five-year replicated study comparing yields using a SeedMaster Toolbar with both 10 and 15-inch row spacing. Conditions for this study were set as equally as possible, including the day of seeding, drill speed, seed and fertilizer rates, packing pressure, in-crop treatments, and the day the field was harvested. Data concluded that there was no impactful difference between the yields of both 10 and 15-inch spacing. Because the results were nearly the same, 15-inch row spacing has the advantage due to the lower quantity of openers required. This means the farmer can save on maintenance costs, draft requirements, and additional operational costs.
- Residue Management System
40 inch residue wheels for heavy trash clearance - Two Interchangeable Rollers
Canola/fine & general purpose – for pulse, cereal, canola, inoculant, and fertilizer - Distribution System
No manifolds, direct metering of product into individual air streams, two fans, separate air systems for seed and fertilizer tanks - UltraPro ll Seed Tank
240 bu. seed, 60 bu. secondary seed/inoculant/starter fertilizer, front metering section - UltraPro ll Fertilizer Tank
150 bu. of fertilizer (or possibly another seed for intercropping practices), 300 bu of fertilizer, back metering section (front to back) - Hydraulic Jack
For quick and effortless tractor hook up - Metering System
UltraPro II with electric drives - Michel’s Roll Tarps
Industry-leading tarps for easy filling (option for electric tarps) - Draft Requirements
400-450 horsepower requirement with Category 5 hitch requirement - Hydraulic Requirements
45-60 gal/min minimum - Electrical Requirements
200 amp alternator required, 240 recommended
- Three times more responsive to uneven terrain
- Eliminates ground-following variability and inaccuracies of other manufacturers’ three and four-rank toolbars
- Sensors monitor and adjust the height of the center section to ensure the openers are engaging with the ground at the perfect setting compensating for the product weight in the tank
- Easily set depth on the openers from the rear of the toolbar without ducking under the frame of multiple-rank toolbars
- The on-frame UltraPro ll tanks and meters are easily accessible for filling, daily maintenance, and calibration
- Over hills, through hollows, turning corners, moving forward, or reversing direction, the Ultra SR is highly maneuverable and reduces frame stress
- Tanks mounted on the toolbar frame transfer product weight to the tractor for extra traction, which can reduce slippage and improve fuel efficiency
- Electric meter drives allow for additional ease – limiting the mechanical components simplifying zone command. Calculate your saving using the SeedMaster online calculator
