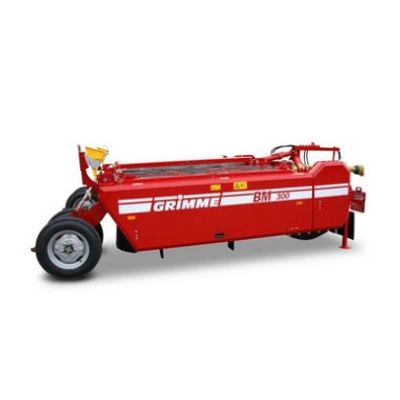

Grimme - Model BM 300 - Six-Row Trailed Defoliator
The defoliator type BM 300 is a six-row trailed defoliator equipped with a steel flail shaft and two cleaning shafts. The machine is mainly used in a so-called two-phase harvesting process for beets, chicory roots and celeriac. The leaf is chopped at full width of the machine and deposited Inline between the (beet) rows. Row widths between 45 cm and 50 cm resp. 18" and 20" available for the BM 300.
Most popular related searches
leaf remover
beet technology
tractor attachment
harvesting system
beet harvesting system
beet root
beet harvesting
celeriac
tractor
beet processing
- Selectable row width of 45 to 50 cm, resp. 18 to 20 inch
- Tractor attachment via drawbar with mechanical drawbar adjustment
- Full width flail shaft with spiral arranged steel flails
- First and second cleaning shaft over the beet rows consist of napped rubber flails. They are manually adjustable to the required row width.
- The depth control is effected at the front by means of a lifting cylinder with a spindle-adjustable end stop. At the rear a spindle-adjustable castor wheels is used.
- Power transmission via PTO shaft 1000 rpm.
- 4 wheels, type 7.50-20 TR 15 AS
