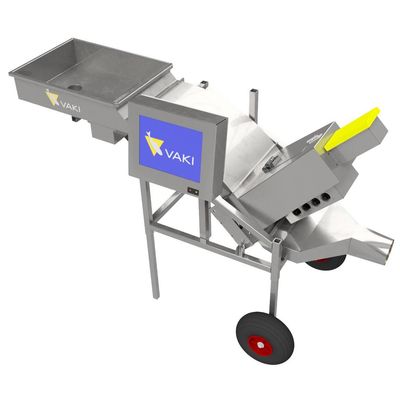

VAKI Nano - Small-sized Fish Counter
The VAKI Nano Counter provides commercial aquaculture operators with highly-accurate counting of fish from as small as 0.05g. The Nano Counter has very high capacity 200,000 fish per hour at 1g size, and the fish remain in water at all times. The Nano provides operators with a detailed counting report and saved digital record of images which are saved for full verification of the count.
- Much lighter to move around between counters
- Can back up other counters in the Macro Micro Range
- Easier to access for any service requirement
- Easier to store for safety and security
- Accurate counting of fish from 0.05g
- Very high capacity 200,000 1g fish per hour.
- Images are saved for verification of the count.
- Counting report printed from the computer.
- The fish are in water at all times.
- Overload alarm.
- Remote monitoring
- Twin channel grading version.
- Automatic batch splitter.
The computer housing stores the computer and the frame grabber which is also connected to the camera.
CAMERA / LIGHT UNITThe camera looks down on the scanning area which is a 40 cm wide light protected by a clear plate. When the fish pass over the scanning area their silhouette images are registered and the fish counted.
CHANNELThe channel can be made in many different versions, according to the needs of the customer.
The counter is adjustable for height and is fully portable.
- Accuracy over 99%
- Fish size: 0.05g-30g.
- Capacity: Up to 200,000 1g fish/hour
- Dimensions: 150x70x160cm (LxWxH)
- Power supply: 110/220V
All non-transparent fish.
