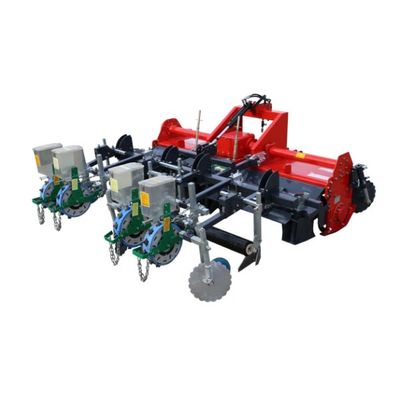

IRIS - Model ISM-X Series - Smart Multipurpose Seeder
Rapid cultivation + crop quality improvement + assembly work (labor reduction) + fertilizer savings of about 50%li lessthen Seed sowing of various seeds such as beans, grains, radishes, and sorghum. Model type: 3 types. ISM-1850X-22 : tillage width 1850mm / 2 ridges - 2 sowing. ISM-2100X-22 : tillage width 2100mm / 2 ridges - 2 sowing. ISM-2400X-24 : tillage width 2400mm / 2 ridges - 4 rows.
Process 1: Rotary work (tillage work)
It is a C-shaped tiller blade type rotary, not a digging machine.
Step 1: Rotary work (tillage work)
By installing a disk that collects soil, it helps to create a smooth ridge shape.
You can use the desired amount of soil by adjusting the height and angle
Step 1: Rotary work (tillage work)
Using a sturdy rotary, it is possible to work in non-beans or in poor soil conditions.
2nd process: ridge forming (soiling work) - 2 ridges
The uncultivated area is small as the length to the ditch forming machine is installed right behind the tillage machine.
Compared to other companies, the door jamb molding machine is made stronger, so even if there is a stone on the ground, there is little deformation, so it can be used for a long time
The width and height of the ridge can be adjusted according to the amount of soil or crops.
Forming of ridges (soiling work) - 2 ridges
Ridge Forming Machine that can form accurate ridges even if the length is short
Dump molding (soil work) - 2 ridges
The height-adjustable harrow is attached, so the height adjustment is smooth and uniform after forming the ridge.
Uniform ridge shaping makes work well during vinyl coating and sowing.
3rd process: vinyl coating
Compared to other companies, the plastic frame is made stronger, so there is little deformation even after long use.
Easy to operate vinyl coating machine
When vinyl coating is not required, the plastic coating machine frame can be manually folded and used.
Vinyl coating work No. 1
vinyl coating work
Vinyl coating work #2
vinyl coating work
4th process: sowing seeds
Sowing of seeds of various seeds such as beans, grains, radishes, sorghum, and corn
Equipped with a sowing device for vinyl coating that can be sown by tearing the plastic well after coating
Various attachments are possible, such as 2 sets, 4 sets, etc.
Vinyl coating + seed sowing work No. 1
Sowing of seeds while covered with plastic
Plastic coating + seed sowing work #2
Sowing of seeds while covered with plastic
