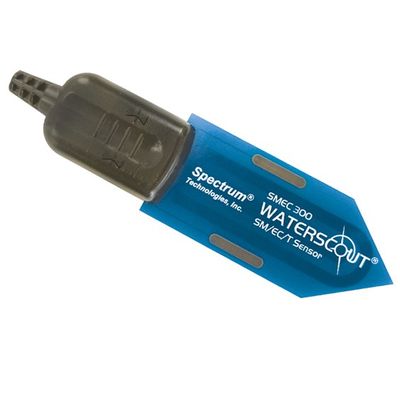

WaterScout - Model SMEC 300 - Soil Moisture/EC/Temperature Sensor

FromSpectrum Technologies, Inc

SHARE

Track soil moisture, salts, and soil temperature: all with a single sensor! Whether it’s container pots in a greenhouse or turf on a putting green, the salinity of the root zone is a critical element for healthy plant growth. Irrigation, fertilizers, and crop demand all impact salt concentrations. High levels can damage the plant: low levels can lead to nutrient deficiencies.

Most popular related searches

soil moisture sensor

soil moisture and temperature

soil borne disease

soil moisture and temperature sensor

soil moisture tracking

soil moisture temperature EC sensor

plant growth fertilizer

Identify situations where soil salinity is an issue or where certain moisture and temperature conditions facilitate soil-borne diseases

Capacitance-type soil moisture sensor
Carbon ink electrodes provide large measuring surface for electrical conductivity (EC)
Easy, 1-step EC calibration process
Can be read with the FieldScout® Soil Sensor Reader (Item 6466) or WatchDog® 2000 and 1000 Series Stations
Connect up to 4 sensors per station (see the SpecSheet in "Manuals / Literature" for specific station limits)
WaterScout Calibration Device (Item 6470CAL3V) required unless using Soil Sensor Reader (Item 6466)

Not compatible with 400/200 loggers.
WatchDog Stations sold prior to 2012 must be upgraded. (Call for support)

Standard Interface: WatchDog station, FieldScout soil moisture reader
Range: VWC: 0% VWC to saturation, EC: 0 to 10 mS/cm, Temp: 33 - 175°F (0.5 - 80°C)
Resolution: VWC: 0.1%, EC: 0.01 mS/cm, Temp: 0.1°F (0.1°C)
Accuracy: VWC: 3%, EC: ± 2%, Temp: ± 1.4°F (0.8°C)
Cable Length: 6 ft (1.8 m) and 20 ft (6 m) standard, extendable up to 50 ft (15 m)
Power Requirements: 3V @ 6 to 10 mA
Output: Analog voltage, time division multiplexed
Sensing Area: 2.25 in. x 0.75 in.
