Spacing Fork

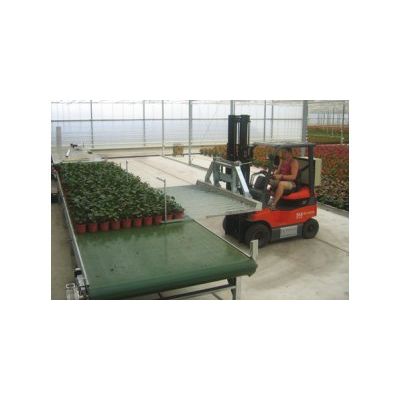

It is possible to pick up blocks of plants from a table or conveyorbelt or from the floor. After picking up, the plants which will be transported to a new place and will be spaced on the desired distance. This spacing will be done by a chain-transporter on the fork with an interface to the driving of the fork-lifttruck. Due to this system the potdistance will remain constantly during driving backwards with the fork-lifttruck.

The machine has following distinguishing features:

• High-quality materials only and maintenance free
• The special HETO dual-chain system with pot-positioning cams.
• The chain is entered in a guiding channel over the entire length of the fork, so that the chain will remain fully in position.
• Software package with interface to the driving gear of the fork-lifttruck, so that the potdistance will remain constant during the spacing.
• Assembly to practically any fork-lifttruck.
• The pots can be picked up as a block or in a pattern.
• Suitable for spacing in pattern.
• Easy operation by means of a switch panel on the fork-lifttruck.
• Built in accordance with the CE-norm
• Malfunction-alarmsystem and emergencystop

• Capacity : up to 5.000 pots/hour
• Fork length : max. 200 cm.
• Fork width : max. 400 cm.
• Potdiameter : from 10 cm.
• Weight : depends on dimensions
• Power supply : from electrical fork-lifttruck (24 or 48 volt)
