Spreading Equipment for Tractor Towed Slurry Tankers
Rigual makes slurry spreading equipment with an innovative design and an advanced production process. The product has been engineered to exceed the requirements related to sustainability and protection of the environment for different types of crops. For units operating in the Spanish market, we supply the documents required to register the unit. Our slurry spreading equipment can be installed on tanks from any manufacturer.
- Slurry spreader PLUS type
The MODEL PLUS Slurry spreader is entirely designed by RIGUAL`s R+D+i department. The spreader couples to a rear hydraulic hitch frame. 9 metre working width with 30 outlets and grinder / distributor.
- Slurry spreader ECO type
The MODEL PLUS Slurry spreader is entirely designed by RIGUAL`s R+D+i department. The spreader couples to a rear hydraulic hitch frame. 9 metre working width with 30 outlets. Version ECO 6/20: 6 metre work witdh. 20 outlets. Directly mounted to the rear dish and the chassis of the slurry tank. Version ECO 220/8: 2,20 metre work width. 8 outlets. Directly mounted to the rear dish and the chassis of the slurry tank.
- Slurry injector
Slurry injector with 5 legs and lifting coupler. 2.5m working width. Optional electronic dosing system.

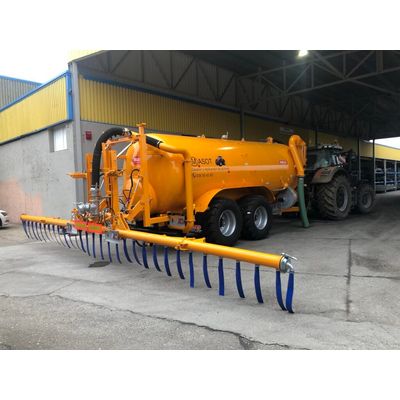

- Vogelsang dribble bar
The Vogelsang dribble bar system technology allows very wide working widths with a uniform product distribution with a wide range of methereological conditions.
- SPREADING SLURRY WITH RIGUAL MODEL PLUS AND VOGELSANG
The MODEL PLUS Slurry spreader is entirely designed by RIGUAL's R+D+i department. The spreader couples to a rear hydraulic hitch frame. 9 metre working width with 30 outlets and grinder / distributor. Slurry injector with 5 legs and lifting coupler. 2.5m working width. Optional electronic dosing system. The Vogelsang dribble bar system technology allows very wide working widths with a uniform product distribution with a wide range of methereological conditions.
-
- The main advantage of using the slurry application by dribble bar is that the uniformity of the distribution will not be affected by the wind.
- Odors are reduced and nitrogen volatilization is lower than with the classic rear fan spreader.
- Working width from 9 to 18 meters.
- Application of adjusted doses according to the needs of the land and the crop.
- Uniformity in the application of slurry in all areas.
- SLURRY APPLICATION WITH MODEL ECO
-
- Working width 9, 6 & 2,20 metre.
- Uniformity in the application of slurry improved compared to the classical rear fan spreader.
- Odors are reduced and nitrogen volatilization is lower than with the classic rear fan spreader.
- SLURRY APPLICATION USING INJECTORS
- Very good distribution uniformity..
- > No need for subsequent burial work
- Significant reduction in nitrogen volatilization with respect to any of the previous methods.
- Since the slurry is injected at a depth of 150 to 200 mm there is practically no emission of odors, which allows application in areas close to urban dwellings.
- The aerial parts of the plants are not affected.
