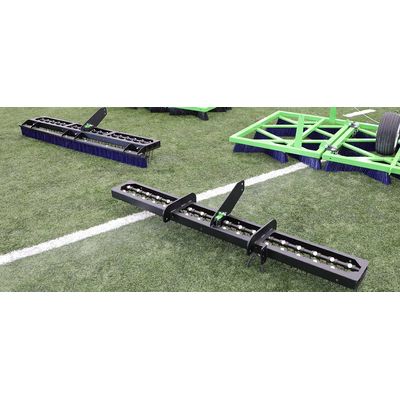

GreensGroomer - Model STR & STR4 - Spring Tine Rake Attachment for Synthetic Sports Turf Groomer
Designed as an attachment to the Synthetic Sports Turf Groomer, the Spring Tine Rake is an important part of synthetic turf conditioning. In-filled turf systems will compact with use. The Spring Tine Rake moves through the turf profile to lift and de-compact the infill. The more frequent a field is used, the more frequent raking and grooming should occur. The Spring Tine Rake is available in two different models. The Rake itself is the same for both units, with different hardware for attaching to the Synthetic Sports Turf Groomer. The attachment points allow the Rake to be setup on current and legacy Synthetic Sports Turf Groomers — (the Original Model 720 and the Model 920 introduced in 2014).
Simple Attachment for All Groomers
The attachment points allow the Rake to be setup on current and legacy Synthetic Sports Turf Groomers.
No Damage to Turf
The Spring Tine Rake will not damage the synthetic turf. At the factory setting, the Rake will comb though the turf and in-fill in the upper .5” to .75” of the turf profile.
Two-Row Tine Architecture
The Spring Tine Rake consists of 2 tine shafts loaded with 28 adjustable tines set at 7/8 inch spacing. The tines are 3/16” in diameter with a 40° tip bend.
Simple Adjustment
Lossening the bolts allows for rotation to a more aggressive or less aggressive angle. Retighten and you’re ready to go.
Product Support
GreensGroomer works closely with its dealer network and customers, whether it`s product questions, maintenance & use tips, or replacement part ordering.
Product Quick Sheets
Here`s the basic product information and specs to answer the simple questions. Greater detail can be found in the Product Support Area of this website.
Proper Turf Maintenance - Raking Your Field is Important to Managing Your Infill
Designed as an attachment to the Synthetic Sports Turf Groomer, the Spring Tine Rake is an important part of synthetic turf conditioning. In-filled turf systems will compact with use. The Spring Tine Rake moves through the turf profile to lift and de-compact the infill. The more frequent a field is used, the more frequent raking and groomer should occur.
Beyond reliable infill management, flexibility in tine settings keeps your field in top condition. The adjustment of the tines is controlled through shaft bolts at both ends of the rake. Lossening the bolts allows for rotation to a more aggressive or less aggressive angle.
Property: Description
- Model: STR & STR4
- Main Frame: 10 gauge steel construction
- Length: 10-5/8 inches
- Width: 74-1/2 inches
- Weight: 85 lbs.
- Finish: Powder coat with 6-step pre-wash including de-greaser and anti rust coat
- Tines: 3/16 diameter w/ 40° tip bend
- Shipping Crate - Crated Weight: 76” x 22” x 21” - 150 lbs.
