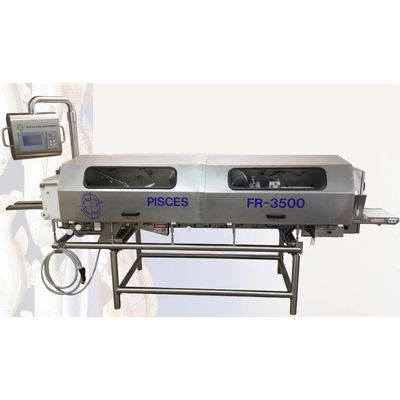

Pisces - Model FR-3500 -Stand-Alone Fish Filleting Machine
A stand-alone filleting machine for head off trout for from 1kg to 3.5kg. Like the FR-200 the FR-3500 incorporates a gutting system in the machine. The FR-3500 uses Pisces 6 blade backbone removal system and PLC controlled rib removal. This provides higher yields on a trout I larger than 1kg. The PLC controlled rib system give the option of removing the white belly fat from the fillets.
Species handling capability includes Tilapia, Trout, Arctic Char, Barramundi, Snappers and similar species where the rib follows the contour of the belly cavity.
Incorporating belly opening and eviscerating components the machine requires only that the fish be headed before introduction to the machine and can be used in conjunction with the Pisces HV 30V head cutter.
The FR 3500 utilizes the Pisces patented three blade backbone removal system and employs a PLC with user friendly interface for precise control of rib removal.
- High yield and production rates
- User friendly PLC interface
- Easy to operate and maintain
- Low operating and maintenance costs.
- Water Connections: Standard Garden Hose Connection 1/2"
- Water Usage: 3.8 liters/minute (1 US gallon/minute)
- Electrical: 3 phase, 208-480 Volts, 50/60 Hz
- Power: 10.5 Hp (7.7 Kw)
- Operators: 1
Specifications subject to change without notice. This machine is subject to U.S. and International patents and meets all CE machine directives.
