Model RV 50 - Stone Buriers for Carrier With Multi-Tool Frame

WORKING WIDTH: 500 mm (19`` 2/3)

TOTAL WIDTH: 690 mm (27`` 1/6)

WEIGHT WITH MESH METAL ROLLER: 120 Kg (264,5 lb)

HYDRAULIC FLOW: 30 à 50 l/min (7.9 to 13.2 US gpm)

PRESSION: 180 bars (2610 psi)

WORKING DEPTH (MAX): 140 mm (5’’ 1/2)

ROTOR OUTER DIAMETER: 400 mm (15’’ 3/4)

NUMBER OF BLADES: 8

GRID FINGER SPACING: 20 mm (4/5``)

HITCH PLATE: Multi tool frame

FORWARD SPEED OF THE CARRIER: 0,8 to 1,5 Km/h (0.5 to 0.9 mph)

ROTOR TRANSMISSION: Hydraulic motor + chain in oil bath

SECURITY: Made by the carrier

TRANSPORT DIMENSION (MM): 690 x 1200 x 550 (27" 1/6 x 47" 1/4 x 21" 2/3)

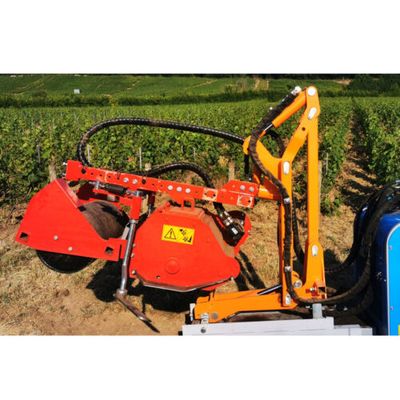

Rotadairon® RV 50 for vineyard inter-row

Description of the Rotadairon® RV 50 stone burier

Want to breathe new life into yours vineyards ? Select one of our soil preparers, the Rotadairon® RV 50. This stone burier has a hitch that allows it to interface with multi tool frame.

This stone burier is used in two ways. Either directly on your old ground, or on your unpacked ground and cleared of its large stones. This machine has a total width of 690 mm (27’’ 1/6) and a working width of 500 mm (19’’ 2/3). Thanks to its strength and power, it prepares your soil and buries detritus, grass and even rocks present on your surface. Its adjustable rear roller helps you control the working depth, which can go up to 140 mm (5’’ ½).

Its robust rotor equipped with 8 patented anti-sole blades turns the ground upside down, thus burying the bulky waste from the old surface. The grid fingers retain the waste and the rocks leaving only the finest soil, which will then be levelled thanks to its height adjustable blade. Finally, its metal mesh roller allows a perfect finish of the terrain.

Our soil preparers replace many tools. In a single pass, your ground is clean, turned and oxygenated. With our Rotadairon® RV 50 Stone burier, your plot is ready for planting again.

Technical Specifications

Size of the machine

• Width : 690 mm (27’’ 1/6)
• Weight with smooth roller : 136 Kg (299.8 lb)
• Weight with mesh metal roller : 120 Kg (264.5 lb)

Work Dimension

• Width : 500 mm (19’’ 2/3)
• Working depth : 140 mm (5’’ ½)

Equipment

• Robust rotor
• Anti-pad blades (Rotadairon® patent)
• Selection grid fingers
• Grader blade

Version

• Mesh metal roller
• Smooth roller

Suggestions

The Rotadairon® RV 50 Stone buriers are to be used :

• On deep unpacked ground
• Directly on the parcel

Service and Warranty

The Rotadairon® RV 50 Stone buriers are delivered with :

• A user manual
• A one-year warrantly certificate

It is possible to add a one-year warrantly extension (additional option).
