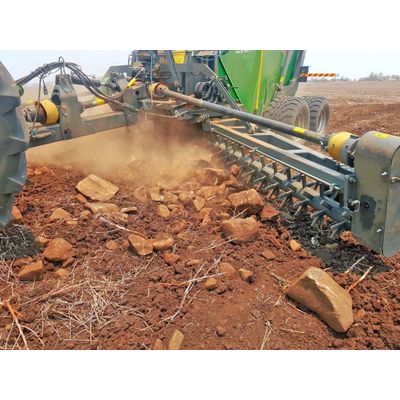

PEL Tuote - Model Kivi-Pekka 4 -Stone Picker
Reliable and cost-efficient powerhouse. Kivi-Pekka family’s trusted younger brother. Ideal for both own use and contracting. Meet the first-born of the Kivi-Pekka family and the little brother of the later, wider models. Despite its long history, it is still constantly developed to meet the need for an affordable but high-performing option.
- Weight 4300 kg (9500 lbs)
- Working width 400 cm (13′ ft)
- Stone size 2,5 – 35 cm (1-13,7 in)
- Output 700 kg/min (1540 lb/min)
- Stone hopper volume 3 m³(106ft³)
- Tyre size 560/60-22.5
- Power requirement 70 hp
- Hydraulics 20 l oil/min (5.3 gal/min)
- Running speed 1 – 6 km/h (0,6-3,7 mph)
- Lifting drum tines 18 pcs
- Tipping hight 290 cm (9′ 6?″)*
*with a trailer’s maximum height of 2700 mm with a stone guard (700/50×26.5 tires). Stones can also be tipped into high dump trucks, making the reuse of stones in other locations easier.
- Hydraulic drawbar
- Front and back lights
- Warning triangle
- Working depth scale
- Scraper for the rollers
- Hydraulic for the tow bar
- Side discs for different working depths
- 586 mm packer
- Hydraulic rake lift
- Soil container
- Trailer coupling
- All PTO shafts
- Hydraulic working depth adjustment
- Sieve (in cultivation direction)
- Walking tandems on rakes
- Parts box
- Tipping height 290 cm (9′ 6?″)*
- Straight belts for lifting drum transmission
- Strong tines 12×45 (0,47″x1,77″)
- Robust rake pivots
- Tyres 560/60×22.5
– Configuration may differ to conform to local codes. Lights, reflectors, drawbar and brake system can vary by country.
Optional accessories:- ISOBUS control
- Rotation guard
- Pneumatic brakes
- 1-circuit hydraulic brakes
- Ball coupling
- Working level indicator
- Tyre options
- 710/45×22.5
- 700/50R26.5
- bogie 500/50×17
- bogie 500/50×20
*with a trailer’s maximum height of 2700 mm with a stone guard (700/50×26.5 tires). Stones can also be tipped into high dump trucks, making the reuse of stones in other locations easier.
