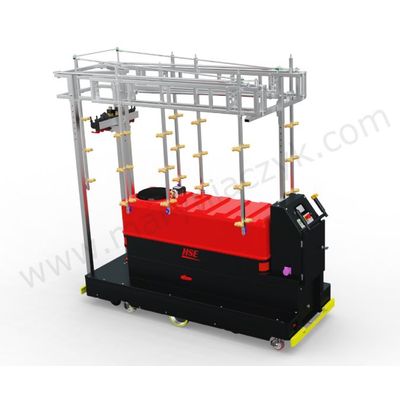

Maryniaczyk - Model HSE300S -Strawberry Sprayer

3-way – manual control units with a fork connector are used together with a control unit with solenoid valves. The section group is designed for connection to computerized electrical spraying systems and row spraying systems that require immediate opening and closing of valves. The control unit has a built-in self-cleaning filter and a built-in maximum pressure valve.

The HSE300S sprayer is designed to move along greenhouse heating pipes and has a 300-litre working fluid tank.

All parameters related to the operation of the device, such as travel speed, route or spraying parameters, are configured from the PLC controller via a 4.5″ touch screen, which also controls the individual elements of the sprayer.

Working with the HSE 300 is easy and intuitive. We program the sprayer`s travel length and the amount of liquid to be used, and the device performs automatic travel and spraying in accordance with the parameters provided.

A special system of wheels located under the device and the steering system allow for a smooth change of rows without the use of force.

On the right side of the control panel you will find a special traction switch that allows you to control the speed of the device when changing rows.

For the HSE300 and HSE300S we have created intuitive graphic software that includes multilingual help. All sprayer elements have their graphic indicators on the display. All data is entered in special options.

• Length: 2253 mm
• Width: 871 mm
• Height: 2098 mm
• Weight: 570 kg
• Tank capacity: 300 L
• Four 0.5 kW electric motors
• Maximum pressure 25 bar
• Maximum capacity 30 l / min
• Travel speed 0-85 m / min
• Lance span when unfolded: 7580 mm
• Lance height: 2310 mm
