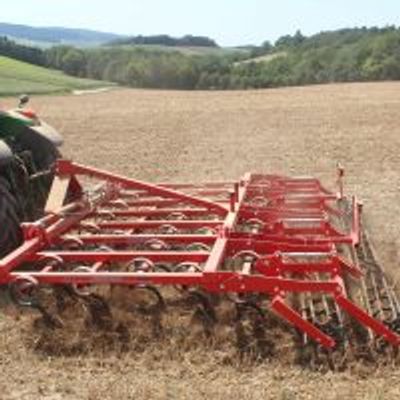

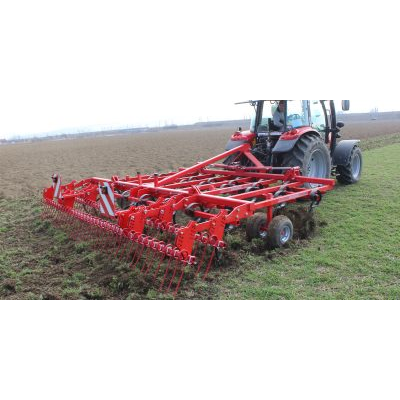

Eurocult - Model II - Stubble Cultivator
From Soil Cultivations
The stubble cultivator is a universal implement for fast tillage with little wear and low costs. It is used for the stubble breaking, tilling of green manure, for weed control, incorporating of slurry, as well as for the seedbed preparation. The large number of tines and the narrow tine spacing of 13cm ensure a uniform and intensive mixing of crop residues.
-
Most popular related searches
Product Details
- Due to 5 rows of tines and an even tine distribution, heap formations and blockages are avoided.
- Tall cover crops can be clogging-free broken due to the large passage height.
- By the appropriate dead weight of the implement a reliable penetration into the soil is ensured, even in very hard ground.
- Two rows of rollers crush and effectively consolidate the soil.
- The device is also available without rollers, for extremely moist conditions or after the application of slurry.
- The depth adjustment is achieved by supporting wheels, which are integrated in an extended frame. They are located between the 3rd and 4th row of tines.
Features
- 5 rows of tines
- completely uniform tine distribution
- extremely narrow tine spacing of 13cm
- 3-piece folding
Features
- 5 rows of tines
- completely uniform tine distribution
- extremely narrow tine spacing of 13cm
- 3-piece folding
Applications
- stubble cultivation
- incorporating catch crops
- mechanical weed control (BIO EUROCULT)
- incorporating slurry and manure
- seedbed preparation for maize or wheat
- cultivating catch crops with small seed dispenser
- working depth of 5 – 18cm
Advantages
- finer working pattern due to large number of tines
- high passage by large beam distance and passage height
- simple processing of the field edge when folded
- pleasant road transport by 180°-folding
- traction requirement less than for heavy cultivators
- less weather sensitive than equipment with discs
Technical Specifications
Series
- 5 rows of tines
- High-quality spring tines 70×12 mm
- Tine spacing 13 cm
- Underframe clearance 59 cm
- 2 rows of rollers – front Ø 37 cm and rear Ø 32 cm
- Double-sealed special ball bearings
- 3-piece folding – ideal for working on edges
- Complete frame made of steel ST 52 / S355
Option
- Duckfoot points 20 cm
- Spring-loaded levelling bars
- Cage roller Ø 41 cm
- Toothed ring packer roller Ø 44 cm with scrapers
- Straw harrow tines (12 mm)
- Support wheels in conjunction with extended frame
- Contact wheels in the front
- Installation of small seed dispenser
- Warning signs with lighting and flashing system
