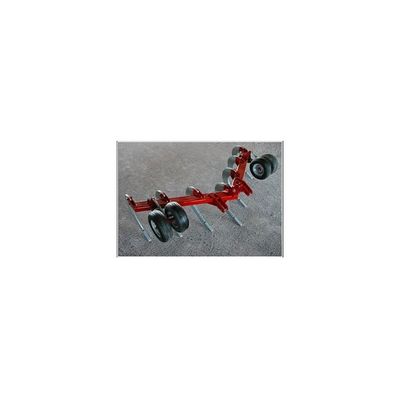

Dave Koenig - Model 300 -Subsoiler
Frames: All frames are constructed with 6" x 10" x ?" structural steel rectangular tubing and are angled to provide maximum soil action with a minimum of draft load. Shanks: Specially curved shanks are mounted to the rear of the frame to maximize ripping depth and assist in alleviating trash build up. The 1 ¼" wide shanks are available with either 33" or 37" clearances between the bottom of the frame and the point.
Most popular related searches
- Bushings/Shear Bolts: Both mounting ears and shanks are protected with hardened bushings and ¾" grooved shear bolts.
- Hitches: Three point hitches accommodate all Cat I, II, or III couplers.
- Wheels/Tires: 9.5L-14 6 ply tires single gauge wheels for 5 shank models and dual gauge wheels for 7,9,11, and 13 shanks.
- Spacings: 24" to 30" spacings and custom spacings are also available.
- Options: Rear Hitch with Hydraulic Hook-ups Steel Gauge Wheels
Models:
- DWK-330 Three Shank
- DWK-350 Five Shank
- DWK-370 Seven Shank
