JBH - Model K01 PP - Substrate Support Plate (SSP)

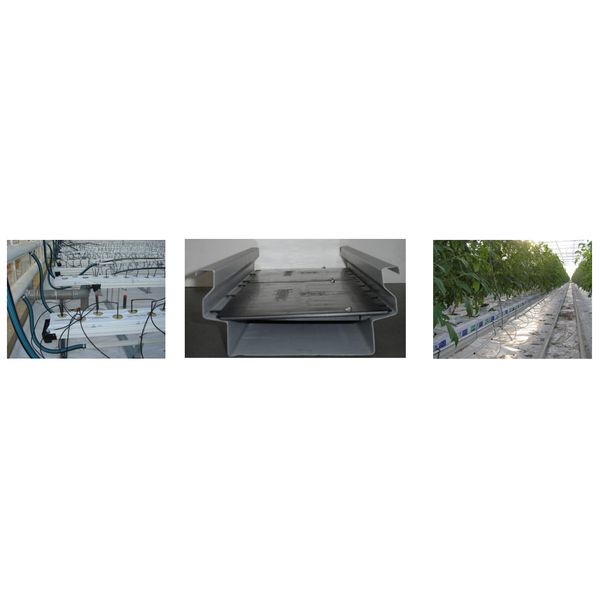

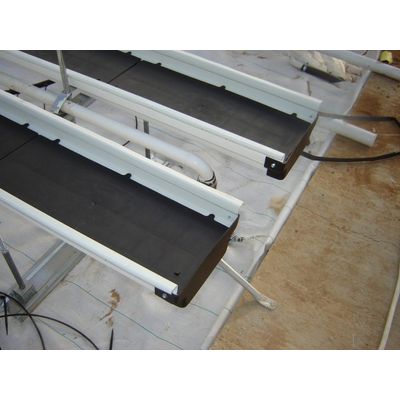

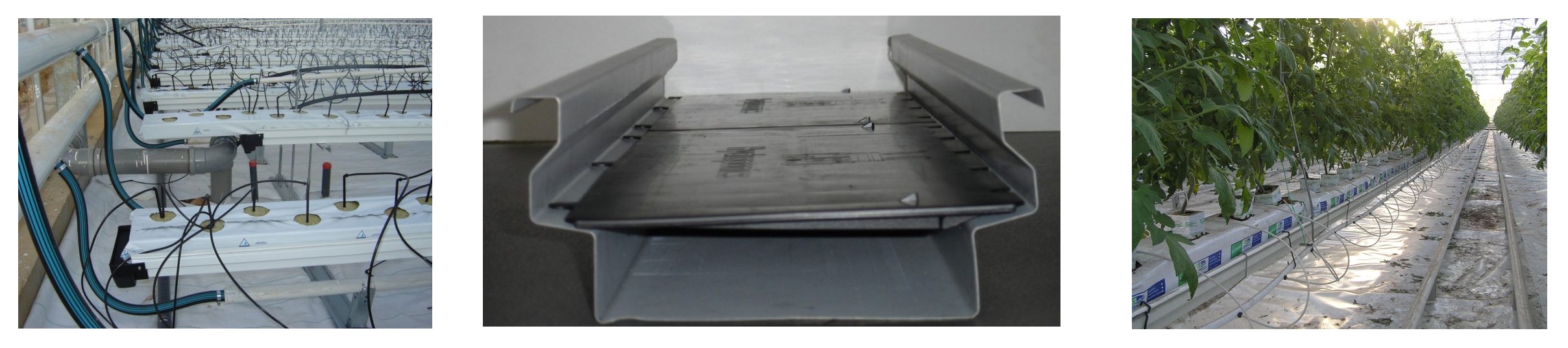

JB Hydroponics has developed a new gutter that prevents root problems and that is stronger than the existing steel gutters. A substrate support plate (SSP) is part of the system, this is a plate made of PP or PVC material on which the substrate rests.
Most popular related searches
substrate slab
hydroponic growing
hydroponic gutter system
hydroponic system
hydroponic
drain gutter
hydroponic gutter
farming system
fruit waste
leaf water
This new gutter has all the existing advantages of a raised system, but has also additional advantages:
- Roots cannot grow into the drain water channel.
- Leaves, fruit or additional waste cannot drop into the drain water channel.
- Hardly any algae problems due to water collection on the inside of the gutter. Light cannot reach the drain water.
- Gutter inside is very easy to clean.
- Gutters remain clean on the outside.
- Very strong gutter due to shape.
- Substrate slabs cannot fall off the gutter, for the slabs are locked in.
- Substrate on top of insulation material. So NO additional root warming due to temperature increase of the steel gutter. Less chance of getting pythium problems.
- Very solid and strong Polyurethane coating of min. 25 mu on top side.
- No scratching of the coating because the substrate lies on the polypropylene plate.
- The gutter can be made in different widths.
This new gutter has all the existing advantages of a raised system, but also has additional advantages:
- Very large drain channel, water will always flow freely.
- The substrate supporting plate helps to prevent roots growing into the drain channel.
- Always a clean drainwater channel, waste can’t drop into the channel.
- No additional root warming due to temperature increase of the steel gutter.
- Less chance of pithium because the substrate lies not directly on the steel but on an insulated plate.
