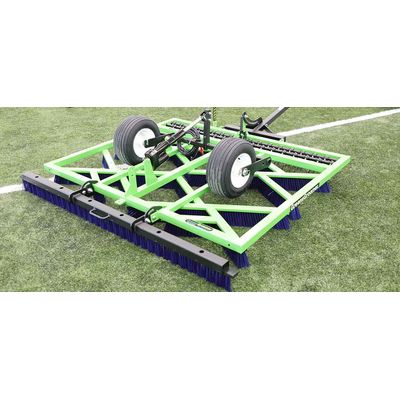

GreensGroomer - Model 926 - Synthetic Sports Turf Groomer with Spring Tine Rake
The Synthetic Sports Turf Groomer was redesigned in 2014 resulting in an improved brush design and increased grooming performance. We’ve taken the design a step further by incorporating an integrated Spring Tine Rake. This unit conditions synthetic turf surfaces and relieves compaction while delivering greater labor efficiencies, ease of operation, and a lower total cost of ownership. This allows grooming in four directions, standing up turf fibers and leveling infill material. The integrated rake simplifies equipment requirements and gives the facility flexibility for on-demand raking without equipment change-over.
New Third Genration Design
Since 2015, this unit conditions synthetic turf surfaces and relieves compaction while delivering greater labor efficiencies and no equipment changeover.
Larger Footprint
Greater brush area affords improved brush action while keeping brushes in top condition longer.
Improved Brush Design
Brush angles produce better infill movement, with 4 direction in one square foot of movement.
Low Cost of Ownership
Simple design and high reliability reduces repair costs. High quality parts and assemblies deliver long-term functionality.
One-Pass Performance
The multi-angled brush design pushes in-fill efficiently while reducing repetitive passes.
Easy Adjustable Tine Level
With a simple level and setting marks, quickly and easily rotate tines upwards and out of the way while not needed.
Product Quick Sheets
Here`s the basic product information and specs to answer the simple questions. Greater detail can be found in the Product Support Area of this website.
New, Third Generation Design - Increased Brush Area Delivers Greater Infill Movement & Integrated Spring Tine Improves Operational Efficiency.
The Synthetic Sports Turf Groomer was redesigned in 2014 resulting in an improved brush design and increased grooming performance. In 2015, we’ve taken the design a step further, by incorporating an integrated spring tine rake. This unit conditions synthetic turf surfaces and relieves compaction while delivering greater labor efficiencies , ease of operation, and a lower total cost of ownership.
Simple in design with a heavy-duty construction, the focal point of this high-performance design are the precise brush dimensions and angles. This allows grooming in four directions, standing up turf fibers and leveling infill material. The integrated rake simplifies equipment requirements and gives the facility flexibility for on-demand raking without equipment change-over.
Property: Description
- Model: 926
- Main Frame: 2 inch square tube (11 gauge) with 1-1/2 inch (10 gauge) Square tube cross bars
- Draw Bar: One piece 2” square tube
- Length: 64 inches, 72 inches with rear brush attachment (106 inches overall including the draw-bar)
- Width - Weight: 72 inches - 375 lbs.
- Running Gear: 2 pneumatic tires (16 x 650-8) Ribbed 2-ply with Oil Impregnated Graf oil bushings
- Electric Lift: 1000 lb. capacity Electric 12 volt linear actuator
- Finish: Powder coat with 6-step pre-wash including de-greaser and anti rust coating
- Brushes: (16) Blue Super Duty Synthetic Brushes with flat bristles attached to polypropylene head - 4-12”; 8-18”; 4-41”
- Tines: 2 rows of 14 tines, 3/16" diameter w/ 40° tip bend, 7/8” spacing
- Brush Weight: 26 lbs. - Full set Blue
- Shipping Crate - Crated Weight: 75-1/2” x 69-3/4” x 29” - 505 lbs.
