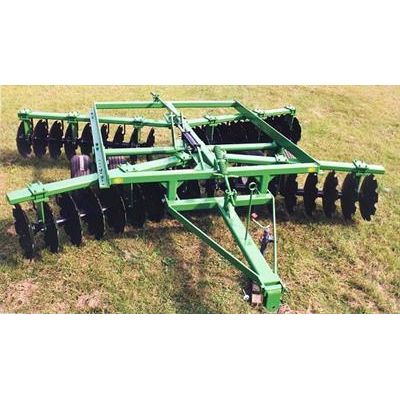

Oliver Dahlman - Model WTHD Series -Tandem Harrow
8’ to 26’ Cutting Widths. Heavy-duty Disc Scrapers. 24” x 1/4” Disc Blades. Heavy-duty Welded Frame. 1-1/2” Square Alloy Steel Axles. Sealed Flange Bearings. 9” and 10-1/2” Disc Spacing. Rigid or Hydraulic Folding Models.
Most popular related searches
- 24” X 1/4” Discs
- 9” or 10-1/2” Disc Spacing
- Hydraulic Lift Cylinder w/ hoses
- Hydraulic Control Group on Folding Models
- Single 11L x 15 Wheels (Dual Wheels on 32-44 blade units)
- Heavy-duty Disc Scrapers
- 22” X 1/4” Discs
- 24” x 5/16” Discs
- 26” x 1/4” Discs
FRAME
Constructed from 4 x 6 x 3/4 angle and 4 x 4 x 3/8 square tubing. Tongue is 3 x 6 x 3/8 and a 4 x 4 x 3/8 drawbar with heavy- duty spring bundle for front to rear leveling.
GANGS
3 x 6 x 3/8 gang carriers provide rigid support for gang components.
AXLES
Made from 1-1/2 square alloy steel to provide strength and durability.
ANGLE OF CUT
Adjustments from 5° to 28°.
BEARINGS
Re-Lubricatable sealed flange bearings on 10-1/2” disc spacing and pillow block bearing assemblies on 9” disc spacing.
