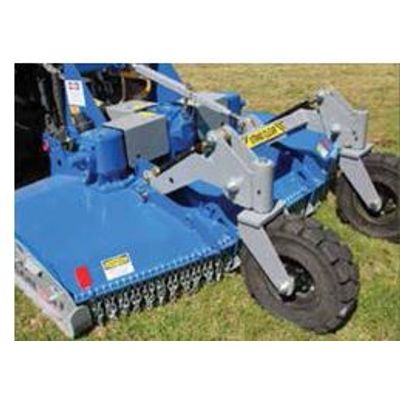

Gason - Model VHD - 3PL - Taper Back Twin Rotor Slasher

8ft with wheel kit

VHD2R2270-3PL (GPN: 224764)

• Width of cut - 2.27m (7`5")
• Deck width - 2.38m (7’10")
• Overall width - 2.5m (8’2”)
• Trucking - 2.5w x 2.3d x 1.2h
• Shipping - 2.5 x 1.8 x 1.2 (5.4 cubic m)
• Weight - 1190kg
• PTO speed - 540 rpm

8ft with roller

VHD2R2270-3PL (GPN: 230415)

• Width of cut - 2.27m (7`5")
• Deck width - 2.38m (7’10")
• Overall width - 2.5m (8’2”)
• Trucking - 2.5w x 2.0d x 1.2h
• Shipping - 2.5 x 2.0 x 1.2 (6 cubic m)
• Weight - 1190kg
• PTO speed - 540 rpm

• Rigid plate headstock connected to under body structure supports
• Rear wheel kit (if fitted) allowing for tighter turning and forward/reverse work (360⁰ castor)
• Manual adjustment for king pin to remain vertical to maintain same cutting height in forward or reverse operation
• Heavy duty output shaft gearbox and PTO shaft Comer Italian
• These features are supported with complimenting options make this slasher ideal for roadside slashing contractors, councils and large property owners

Standard Features

• Deck Material - 6mm Deck, fully welded top with 6mm side plates
• Deck Profile - Folded easy clean deck design including tapered back for a tighter turning arc (GPN 224764 only)
• Gearbox - 120HP Comer 1:1 42 Gearbox with 20 spline input shaft
• Wheel/Roller Option - GPN 224764 includes castor wheel kit std / GPN 230415 height adjustable roller, 220mm Diameter with domed ends
• PTO Shaft - Comer T80 Series and torsion rubber couplings
• Clutch: 4 Plate clutch with over-run
• Finish - Low bake enamel
• Headstock - 8mm Fixed plate headstock with upper hitch point "Flip Top" feature (Cat 2) Working range locked & slot 5⁰ down and 47⁰ up with shock absorbing pad
• Skids - 6mm Height adjustable sides with simple "lock & dog" adjustment including 100 x 12mm hardened steel skids
• Debri Control - 8ft Model featured rear discharge deflectors to minimize windrowing
• Rotor Bar - 120 x 14mm Spring steel rotor bars
• Tyres - 6.00 x 9" Wheel kit with solid rubber forklift tyres fitted std

• Oil seal protector kit twin rotor only (Comer gearbox only)
