Riuttolehto Oy

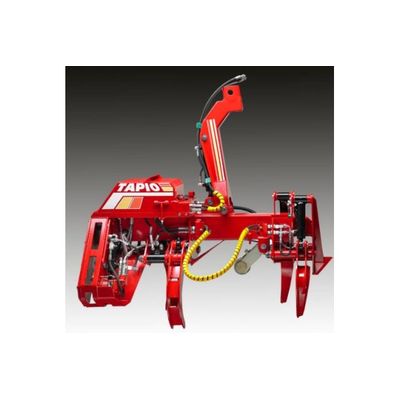

TAPIO - Model 350 EXS -Stroke Harvesting Head
FromRiuttolehto Oy
Tapio 350 EXS stroke harvesting head. Standard equipment; Length measuring with measuring wheel. Siemens MiniLogo control system. Siemens Logo TD display. 2 push button boxes, 6 buttons in both boxes connected to Siemens MiniLogo. Push button box holder, 2 pcs. 17x0,75 boom cable from Siemens Minilogo unit to harvesting head. Connectors to boom cable. Covers to connector. Saw bar .404" 1.6 14″. Saw chain .404-1.6 53. two additional hydraulic valves mounted in the harvesting head, one for rotator and one for felling cylinder.
Most popular related searches
stroke harvester head
harvester head
stroke harvester
harvesting system
chain saw
delimb
delimber
harvesting boom
- Length x width x height : 1450 x 700 x 850 mm
- Weight : 290 kg
- Electric system : 12/24 Vdc
- Saw blade : .404 1.6 14"
- Saw chain : .404 1.6 53
- Pump/pressure 1500r/min : 80 l/min 160 bar
- Feed speed : 0,8 m/sec
- Delimbing power : 20 kN
- Maximum cutting diameter : 350 mm
- Minimum delimbing diameter : 40 mm
- Maximum delimbing diameter : 300 mm
- Harvester output : 28 kW
