MMM-Tech - Model TX-E - Tensiometer

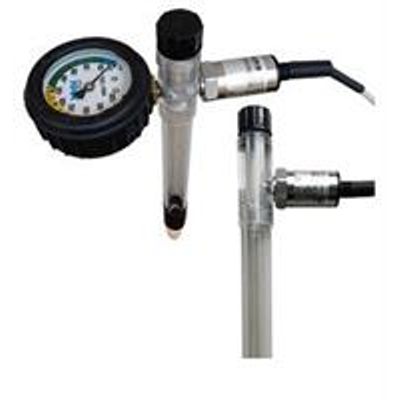

TX-E is an electronic TX Tensiometer for data-logging, offering a linear Voltage Signal 0 to 5V DC. Therefore TX-E can be used with every Data logger, which can read a Voltage Signal. The TX-E is available with and without additional analogue gauge. Measurement range is 0 to 1000 hPa soil water potential. Apart from this offers the model TX-E all field approved properties of the analogue TX Tensiometers, such as extremely fast reaction on changes in soil water potential and very low maintenance requirements.
Most popular related searches
soil water potential
soil water
water potential
tensiometer
fruiting vegetable
ornamental plant
vegetable planting
electronic tensiometer
potato plant
potato crop
- Unit: mbar (=hPa)
- Measurement: Relative Pressure (low Pressure against Atmosphere)
- Range: 0 – 1000 hPa
- Accuracy: ±0,5 % over full range
- Resolution: 1 hPa / mbar
- Signal: Ratiometric, 10 to 90% of supply Voltage
- Power: 2.7 to 5.0 VDC
- Cable: 3m
- Seal: Thread cap
- Shaft: OD 22 mm, ID 16 mm, wall 3 mm
- Ceramic Tip: 5 cm
- Datalogging in Fruit, Vegetables, Ornamental Plants, Potatoes and other Crops
