NAAN TopDrip - Thin to Medium-Walled Pc ...

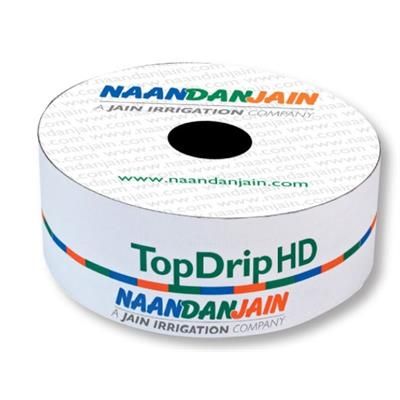

NAAN TopDrip - Thin to Medium-Walled Pc Flat Dripline

FromJain Irrigation Systems Ltd

SHARE

Innovative, cost effective, pressure-compensating (PC) and anti-syphon (PC AS) thin to medium-walled dripline models based on the cascade labyrinth.

Most popular related searches

underground drip irrigation

drip irrigation

pressure compensating dripper

underground irrigation

compensed dripper

Row crops like Sugarcanes, vegetables etc.
Subsurface drip irrigation (SDI)
Variable topography
Irrigation of long rows with high uniformity

Accurate pressure-compensating dripper
Low CV: 3.0%
Cascade labyrinth incorporated for maximal clog resistance
Protection from root intrusion
Unique double self-cleaning mechanism
Allows longer laterals with EU of 95%
Large water passages for optimal durability at low flow rates
Multiple channel water inlet for operation under heavy dirt load
Close dripper spacing creates a continuous wetted strip

PC AS: Anti-syphon design prevents suction at draining stage
Recommended for subsurface drip irrigation

Flow rate: 0.6, 1.0, 1.6, 2.0, 2.2, 3.5 l/h
Pressure regulating range: 0.4-3.0 bar
Operating pressure: 0.4-3.0 bar, according to wall thickness
Wall thickness: 13-25 mil, 0.33-0.63 mm
Recommended filtration: 130 microns (120 mesh)
