Vermeer - Model BC1200XL - Tier 4i (Stage IIIB) Brush Chipper

• Get more done thanks do the aggressive feeding action of dual horizontal offset feed rollers.
• Protect your engine with the SmartFeed system, which monitors engine speed and stops or reverses the feed rollers if needed.
• Take on the heavy work with an optional winch for effortless handling of large logs.
• Prevent premature wear to the belt-drive system using the clutchless PTO system, which prevents high-speed engagement of the cutter drum.
• See your Vermeer dealer for comprehensive service and genuine Vermeer replacement parts.

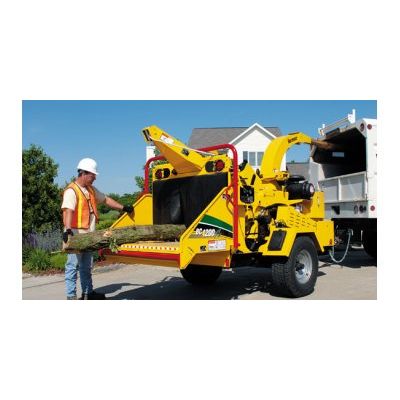

When there’s tough brush-clearing work to do, you can count on the Vermeer BC1200XL to handle it. Available with either a 85-hp (63.4 kW) or 110-hp (82 kW) Cummins Tier 3 diesel engine, the BC1200XL is rugged, powerful, and offers innovative features designed for safety and performance.

Not only does the BC1200XL tear through material up to 12" (30.5 cm) in diameter, its patented productivity enhancements help make the job easier for you. Our exclusive SmartFeed system automatically monitors engine speed and stops or reverses the feed rollers if needed, reducing strain on the engine. The dual-pump hydraulic system helps deliver an impressive 3600 lb (1632.9 kg) of theoretical pull-in force for the heavy work. The operator controls are conveniently located close to the infeed area, helping you monitor the machine while it works.

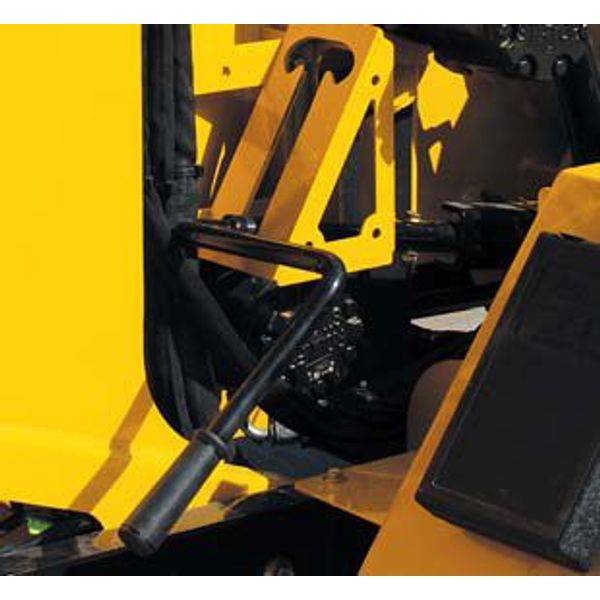

The BC1200XL includes a number of exclusive safety features. The strategically located bottom feed stop bar makes it possible for an operator’s leg to either intentionally or automatically strike the bar and shut off the feed mechanism in an emergency. The optional winch features a new patent-pending winch line interlock, which requires the end of the winch line to be attached to an interlock hook in order for the feed rollers to be operable.

In the world of quality, dependable tree-care equipment, Vermeer stands tall.

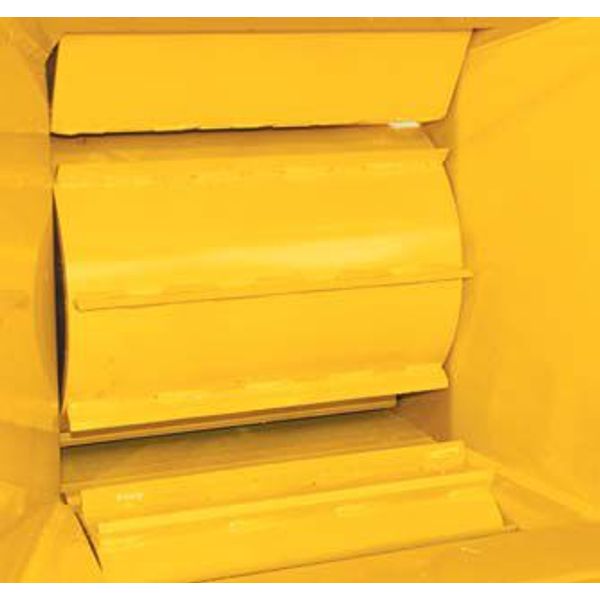

Dual horizontal offset feed rollers improve performance by aggressively grabbing and feeding material to the drum. The offset helps the upper feed roller climb over big logs or material with lots of branches or forks.

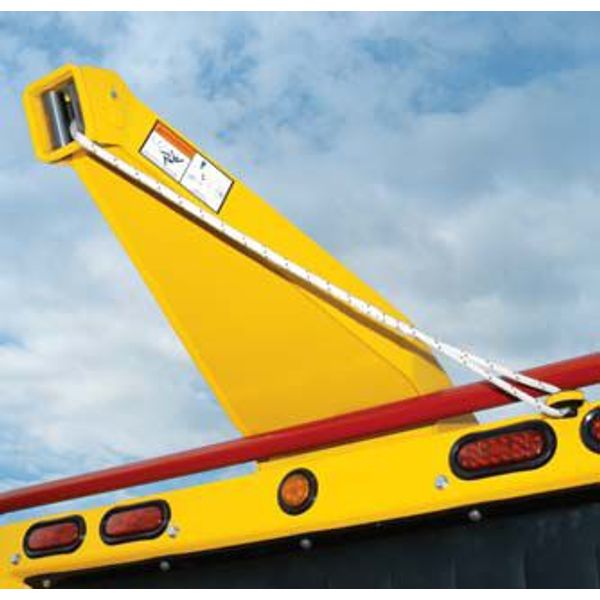

Easily lifts heavy material. An optional winch allows operators to move large logs effortlessly. The 150` (45.7 m) winch line can handle logs up to 2000 lb (907.2 kg) and can be used to lift the log onto the feed table.

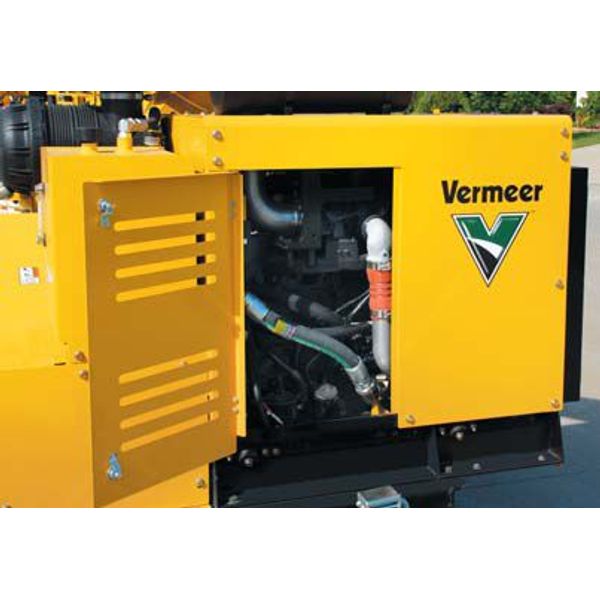

Engine options to fit your needs. With two Cummins diesel engine options providing 85 hp (63.4 kW) or 110 hp (82 kW), contractors have the ability to choose an appropriate horsepower option based on their jobsite. A steel engine enclosure helps provide additional durability.

A clutchless PTO system reduces premature wear to the belt-drive system by preventing high-speed engagement of the cutter drum. The throttle is integrated with the belt drive to help ensure the PTO can be engaged only while the engine is at low speed.

General

Weight (with winch): 5600 lb (2540.1 kg)
Weight (without winch): 5325 lb (2415.4 kg)
Transport length: 14` (4.3 m)
Width: 79" (200.7 cm)
Height: 103" (261.6 cm)

Engine Options

Make/Model: Cummins QSB3.3 Turbo Tier 3
Horsepower: 110 hp (82 kW)
Max torque: 304 ft-lb (412.2 Nm) @1600 rpm
Fuel type: Diesel
Number of cylinders: 4
Cooling medium: Liquid
Make/Model: Cummins B3.3TAA Turbo Tier 3
Horsepower: 85 hp (63.4 kW)
Max torque: 215 ft-lb (291.5 Nm) @1600 rpm
Fuel type: Diesel
Number of cylinders: 4
Cooling medium: Liquid

Capacities

Fuel tank: 25 gal (94.6 L)
Hydraulic tank: 12 gal (45.4 L)

Cutting System

Drum size: 20" dia. X 20" (50.8 cm dia. x 50.8 cm) wide
Speed: 2000 rpm
Knives: Two A8 chipper steel
Shear bar: Four useable edges

Feed/Discharge System

Infeed throat/feed capacity: 13.3" x 17", (33.7 cm x 43.2 cm)
Infeed opening: 52" x 32" (132.1 cm x 81.3 cm)
Feed table length: 30.1" (76.5 cm)
Feed table height: 32" (81.3 cm)
Feed roller style: Dual horizontal offset
Infeed rate: 0 fpm – 122 fpm (0 m/min – 37.2 m/min)

Chassis

Frame: 7" x .25" (17.8 cm x .6 cm) Z-channel
Tires (option 1): ST235/80/R16 Load Range E
Tires (option 2): ST285/75/R16 Load Range E
Axle/Suspension: 7000 lb (3175.2 kg) rubber torsion
Electric brakes with breakaway switch

Electrical

System voltage: 12 V
Lights: Brake, turn, tail, license, side indicators
