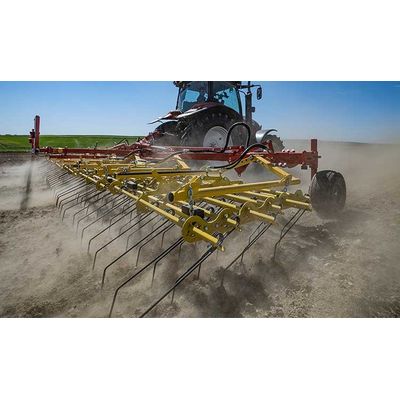

APV - Model AS 300 M1 - Tined Weeder for Soil Aeration and Weed Control
FromAPV America Inc.
The 9/32 in (7 mm) tines take care of the crucial work. They are arranged in a tine spacing of 31.25 mm (1 7/32 inches) and in 6 rows. The main focus is on combating unwanted weeds.
Most popular related searches
soil aerator
tined weeder
soil aeration
tine
tine spacings
weeder
weed control
harrow
tine harrow
tractor tyre
Operations
The tines penetrate the soil while harrowing to a maximum depth of 13/16 - 1 3/16 inches (2-3 cm) to break up and crumble the upper soil crust. This ensures better soil aeration and the capillarity is interrupted. However, the primary focus is the control of unwanted weeds. 90% of the weed germs are decimated naturally by pulling them out of the soil and deposited them to wither.
EXACT
- Uniform work pattern
- Independent ground adaptation of each individual section array to ground contours
- Greater bend angle of the tines for excellent harrowing result
- Constant ground adaptation of the harrow sections through chain suspension
- Uniform application of pressure by the forks on the harrow sections on undulating ground due to individual suspensions and lateral compensation of each individual fork
VERSATILE
- Possibility to mount 6 mm, 7 mm and 8 mm tines
- Feeler wheels that can be adjusted to the track width
COMFORTABLE
- 13/16 in (20 mm) longer wear tips on the tines - means longer service life
- Smooth folding due to curve control and longer hydraulic cylinders
- Lower linkage catch tongue for easier coupling of the harrow
- Easy central tine adjustment per section due to screwless connection
- Lateral sections are automatically pivoted in due to parallel guidance
- Reducing unwanted weeds
- Promoting soil organisms
- Soil stimulation
- Increasing of the soil yield
- Interrupt capillarity
- Working width : 19.6 ft (6 m)
- Transport dimensions (folded):
- H4.9ftxW9.8ftxD7.2ft
- H 1.50 m x W 3.00 m x D 2.20 m
- Net weight : 837.8 lbs (380 kg)
- Tine diameter : 9/32in(7mm)
- Number of tines per section : 48 tines, 17 3/4 inches (450 mm) long
- Tine spacing: 1 7/32 inches (31.25 mm)
- Mounting category : CAT 2 or CAT 3N
- Feeler wheels : 2 wheels (18.5x8-8" tyres)
- Tractor performance : 22 kW/ 30 HP
