Philip Watkins Ltd

Tipping Trailers

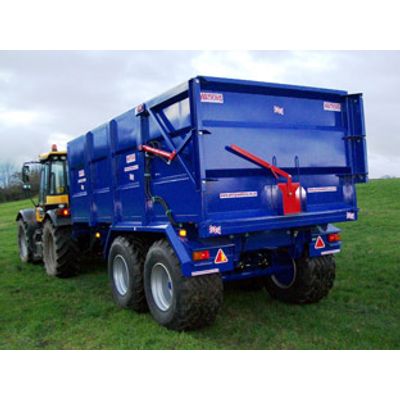

Although we do not make a standard range of tipping trailers, we specialise in the bespoke trailer - if you require a large number of options or a specific body size we can build a trailer to suit your exact requirements. Pictured above and below, 16 foot tipping trailer with 20 tonne parobolic spring set, commercial axles, 620/50x22.5 vredestein high speed wheels, air brakes, hydraulic back door, grain chute, sprung drawbar, mudguards, full hgv lighting kit plus flasher.
Width 8 feet. 5 feet high body

Above and below - High Speed Grain/Silage Trailer, 26m³ grain and 42m³ silage capacity, 22’6” long body, complete with 3 commercial axles (1 self track steering), super singles, hydraulic back door, air brakes with ABS, sprung drawbar, LED lights and mudguards.

Above and below - High Tip Trailer, 16T capacity, approx 2.2m discharge height, complete with commercial axles, 560/45x22.5 wheels, hydraulic back door, sprung drawbar, large grain chute, load sensing hydraulic brakes, LED lights, front window, mudguards


All trailers can be equipped with

  • A choice of air or oil brakes
  • ABS
  • Tyres of your choice
  • Sprung axles and drawbar
  • 6, 8, or 10 stud axles
  • Full commercial specification
  • Hydraulic door
  • Grain chute
  • Various strap boxes
  • Different track widths to suit row crop work
  • Loading ramps
