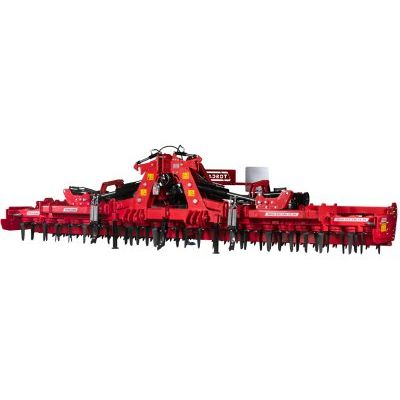

TOSCANO - Toscano Power Harrow - Folding
The Toscano Power Harrow - Folding is engineered to optimize soil preparation through its vertical blade system which rotates alternately right and left. This action is pivotal in the creation of an ideal seedbed while effectively managing plant residues and weed elimination. It also facilitates thorough mixing of fertilizers across varying soil layers, creating channels for water penetration and minimizing soil layering, thereby improving soil structure. The machine is equipped with high-durability Italian-made blades, each measuring 30cm in length and 1.5cm in thickness. Its protective shaft safeguards both the machine and tractor from mechanical stress during high-speed operations. Additionally, the power harrow features a double outlet PTO gearbox with 1000 RPM facilitating combination with seeding machines. The sophisticated rotor prevention system, anti-jamming technology, adjustable side covers, and protective mechanisms ensure seamless operation, minimizing disruptions caused by common soil impediments.
Power Harrow is a tillage machine with vertical blades that turns right and left continuously.
It prepares seedbed; eliminates weed and plant residue; mixes fertilizer; creates water channels in deeper layers of the soil. It also minimizes stratification.
- Power harrow does not turnover the soil, keeps the moisture inside.
- Since the blades operates right and left, it does not hold any soil or mud.
- Vertical operation increases the water intake of the soil.
- It allows the plant roots to develop faster by preventing stratification deep in the soil.
- Specially adjusted blade alignment increases efficiency while reducing vibration.
- Universal CAT III or CAT IV 3-point link.
- 1 3/8” Z:21 Spline PTO Protective shaft
- 1000 RPM gearbox provides rotor speed of 279 rpm.
- 300 mm long, 15 mm thick, quick adjustment high quality blades.
- Hydraulically adjustable packer roller with mud scraper
Rotor protection system (developed by Toscano ;prevents entanglement of hoses, cords, sons, etc.) - Anti-jamming system (prevents blocking of the stone between the rotors).
- Hydraulic floating kit hook
- Adjustable leveling profile.
- Links before oscillation.
- Movable and adjustable side covers.
- Removable CE safety protectors.
- Specially tuned blade alignment increases
- Efficiency while reducing vibration
DURABLE BLADES
High quality; Italian Made; 30cm length; 1,5cm thick blades.
PROTECTIVE SHAFT
Shaft protects the machine and the tractor from possible damages while working with higher speeds.
DOUBLE OUTLET PTO GEARBOX
Double outlet enables seeding machine combination.
PTO Gearbox with 1000 RPM
ROTOR PREVENTION SYSTEM
An innovative system developed by Toscano, prevents the blades getting tangled by the pipe, hose, rope, wire etc.
ANTI-JAMMING SYSTEM
Prevents stones and other stuff to get stuck between rotors.
ADJUSTABLE SIDE COVERS
Prevents the soil for pouring out of the tilling line and it is adjustable according to working height.
MOBILE SIDE COVERS
Protects the machine from stones that could be stuck between the side covers and rotating parts by flexible spring system.
FLATTEN PROFILE
It smoothes the soil on the ground, easily adjustable.
ADJUSTABLE ROLLER LEVEL
Roller height can be adjusted by the mechanism on two sides of the machine.
ADJUSTABLE SLUDGE SEPERATOR
Separators can be adjusted by the screw based on the needs of soil structure.
