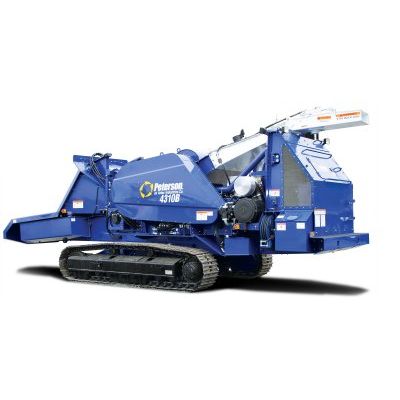

Model 4310B - Track Mounted Drum Chipper
From Drum Chippers
The track mounted 4310B Drum Chipper is suited for high volume biomass producers who have a wide variety of feed material from brush and small feed stock to logs up to 24 inches (61 cm) in diameter. The 4310B is powered by a 765 horsepower (570 kW) C18 Caterpillar engine. At 58,500 pounds (26 535 kg), the track mounted 4310B is designed for operations requiring high production and frequent moves between jobs.
-
Most popular related searches
Product Details
The chipper utilizes a 36 inch diameter by 44¾ inch (91 by 114 cm) wide drum with either 6 or 12 knife pockets. Traditional babbitt type knife systems are standard equipment. Chip length can be set from 1⁄8 to 1¼ inch (3 to 32 mm) depending on rotor and knife configuration.
Other key features include a hydraulic clutch, sloped feed deck for ease of feeding the chipper, and wear resistant AR 450 wear surfaces on the drum pockets and shell. Optional material sizing grates further reduce oversize twigs and branches in the chips, and an optional chip accelerator helps with loading.
The 4310B comes equipped with a wireless remote transmitter, putting control in the palm of your hand.
The end load spout is standard, and an optional top loading spout is available.
Since 1981, Peterson has specialized in the developing of delivery and processing equipment that turns low-grade organic materials into high value products.
Features
The Adaptive Control System Features Intuitive Interfaces
The large display provides information to make chips more efficiently. On-screen maintenance instructions and self-diagnostics features increase your up-time.
Aggressive Feeding System
A sloped feed deck and three strands of WHD 120 feed chain, paired with an aggressive feed roll make loading the 4300-series easy in all types of material.
Knife Assemblies: At The Heart Of The Chipper
Produced from the highest quality alloy chromium steel, heavy-duty Peterson knife assemblies achieve uniform production of wood chips with high accepts and minimal losses.
Select From 6 or12-Pocket Drum Styles
Featuring durable AR450 wear surfaces, the 4310B comes standard with a 6-pocket drum rotor with one Babbitted knife per pocket. A 12-pocket drum rotor is available for chipping microchips.
Superior Product Sizing
Peterson’s secondary grate system provides ultra-consistent chip sizing; twigs and small stems which can be difficult to size are easily fractured through our innovative system.
Specification
Dimensions & Weights- Top Load Spout
Operating Length 40'(1220 cm)
Travel Length 41'-7' (1268 cm)
Operating Height 18'-6' (564 cm)
Travel Height 12'-1' (368 cm)
Weight (depending on options) 65,000 lbs (29 483 kg)
Dimensions & Weights- End Load Spout
Operating Length 30'-5' (928 cm)
Travel/Operating Height 11'-7' (354 cm)
Bottom of Spout 16'-8' (508 cm)
Weight (depending on options) 58,500 lbs (26 535 kg)
Dimensions- Top Load and End Load Spout Models
Width 500 mm track pads 10'-3' (312 cm)
Width Opt. 600 mm track pads 10'-6' (320 cm)
Front Ground Clearance 2'-10 1/2' (88 cm)
Rear Ground Clearance 2'-4' (71 cm)
Front Clearance Angle 15 degree
Rear Clearance Angle 18 degree
Front Overhang 7'-3/4' (233 cm)
Rear Overhang 9' (246 cm)
Feed Deck Length 8'-2' (249 cm)
Feed Deck Width 8'-2' (249 cm)
Feed Deck Height 4'-9 1/2' (146 cm)
Feed Width 3'-4 1/2' (103 cm)
Frame Length 29'-4 1/2' (895 cm)
Ground Pressure–Top Load Spout
500 mm Tracks 12.4 lbs/in² (0.87 kg/cm²)
Opt. 600 mm Tracks 10.3 lbs/in² (0.72 kg/cm²)
Ground Pressure–End Load Spout
500 mm Tracks 11.2 lbs/in² (0.78 kg/cm²)
Opt. 600 mm Tracks 9.3 lbs/in² (0.65 kg/cm²)
Powertrain
Engine Caterpillar C18
Horsepower 765 hp (570 kW)
Clutch PT Tech HPTO 14 FX
Fuel Tank Capacity 280 gallons (1060 L)
Main Hydraulic Tank Capacity 110 gallons (416 L)
Controls
Peterson Adaptive Control System
Radio Remote
Feed System
Drag Chain 3 Sections, WHD 120, 36 3/4' w (93 cm)
Feed Opening 24' h x 40 1/2' w (61 x 103 cm)
Internal Drive Compression Roll 28' dia (71 cm)
Feed Rate up to 120 ft/min (3657 cm/min)
Chipper
Drum Chipper–6 or 12 pocket 36' dia x 44 3/4' w (91 x 114 cm)
Babbitt Knives
Production
60 to 120 tons per hour (59 to 109 metric tonnes)* *depending on wood species, chip size, and moisture content
