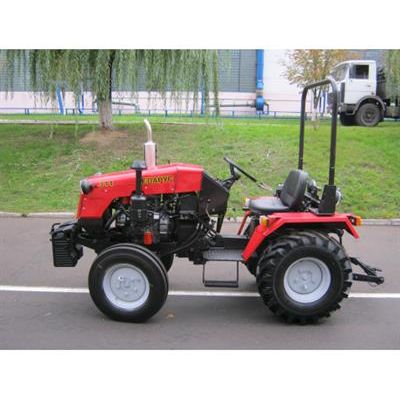

Belarus - Model 311 -Tractor

Engine

• Type Diesel
• Model Laidong 3Т30
• Power, KW (h.p.) 24,3 (33,0)
• Rated Speed, rpm 3000
• Number of Cylinders, pc 3
• Engine capacity, l 1,617
• Fuel Tank Capacity, l 25
• Category 0,6
• Torque, Nm 100

Transmission

• Gearbox mechanical, step-by-step
• Number of Gears:
• forward/reverse 16/8 or 8/4
• Speed, km/hour:
• forward/reverse 3,1-25,2 / 5,5-13,3
• Clutch single-disk, friction-type, constantly-closed
• Drive (optional) 2WD or 4WD
• Differential locking, rear
• Power take-off (PTO):
• dependant I, rpm 540

Brakes

• Type    disks, wet, mechanical (separate control)

Dimensions and Weight

• Length, mm 3050
• Width, mm 1300
• Height, mm 2280
• Wheelbase, mm 1660
• Tread, mm
• front wheels 1000; 1200; 1350
• rear wheels 1000; 1160
• Ground Clearance, mm 320
• Least Turning Radius, m 3,6
• Operating Weight,kg 1500
• Agrotechnical clearance under
• the sleeves rear wheels,mm 435
• Tires (standard):
• 4WD:  front/rear 210/80R16/ 11.2-20
• 2WD:  front//rear 6.50-16 / 11.2-20

Hydraulic System

• Lifting Capacity, kg 870
• Pump Productivity, l/min 17
• Oil Tank Capacity in the Hydraulic and Steering Control System, l 9,0

• battery (12V);
• parking hand brake;
• steering wheel with an adjustable angle;
• power steering;
• rear PTO 8/21 and 6/21 splines;
• rear hitch (3-point, 1 hydrocylinder, locking chain);
• 2-sectional hydraulic spreader;
• hydraulic outlets (2 pcs. on the rear side);
• socket (on the rear side);
• emergency lights;
• frontal and rear working lights (2 pcs. front, 2 pcs. rear);
• turning lamps (2 pcs.);
• horn;
• license plate backlight;
• hand acceleration;
• adjustable seat;
• footboard;
• safety bar;
• rear view mirror;
• hand acceleration;
• dashboard backlight;
• wheels hanging nuts (4);
• spare parts package

• drawbar (2 types);
• towing fork;
• crossbar;
• front hitch with front PTO;
• front weights (20 kg x 8pcs);
• rear weights;
• plastic roof;
• front wheels 7.5L-16 and rear wheels 12.4L-16 (4WD);
• lawn tires
