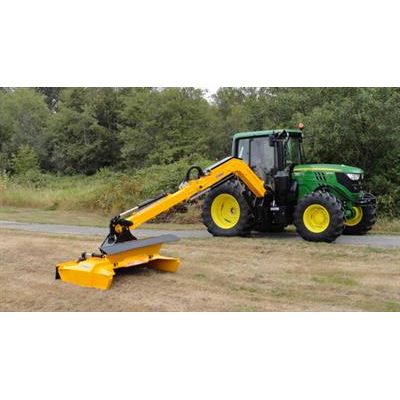

US Mower - Tractor Mounted Rotary Boom Mower

Tractors must be equipped w/ 34” rear wheels for in wheel counter weight. Domex steel boom & jib construction / 4140 pins. All structural components are T-1 or Domex steel. Electronic joystick control, multi axis with Digital Controls. Front mount hydraulic pump – 38gpm 3000 psi (66hp to cutter motor)-Gear, piston and combo piston/gear pumps available.. High efficiency oil cooler, 25,000 BTU exchanged. 25 gallon vented reservoir, 100 mesh pick-up screen. 150° swing radius 120° from stow location. Mower does not reduce ground clearance, Drawbar is lowest point. Rear stow capability travel width of 102” with flail mowers. Oil temperature & level gauge, 10 micron filter element. 1 year factory warranty.
