COMMANDER - Model T855 - Tractor with Attachments
From Rockwheel Tractor Attachments

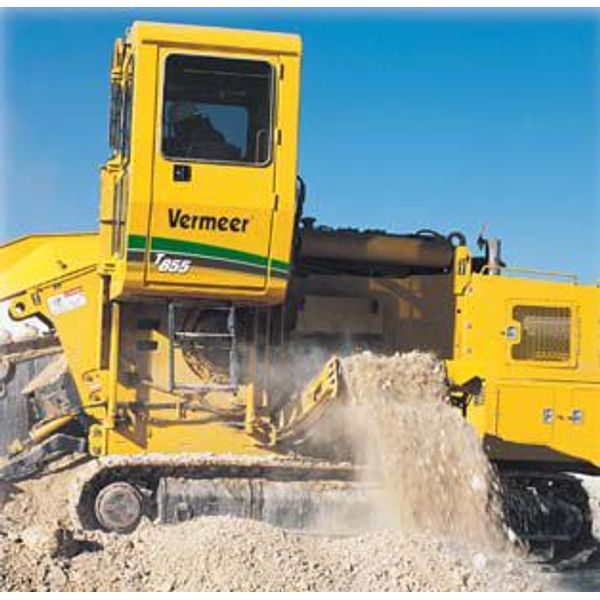

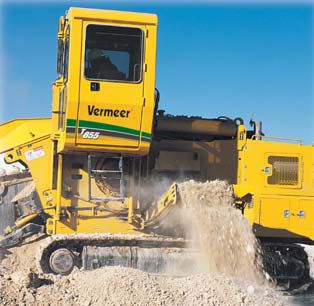

The T855 COMMANDER 3 tractor bullies through most surfaces with a powerful ATAAC Caterpillar C9 ACERT Tier 3 electronic engine. When equipped with a trencher attachment, it handles 6’-12’/1.8-3.7 m rock-trenching jobs for utility, water or sewer installations. With a Terrain Leveler surface excavation attachment, the T855 makes short work of surface mining, site preparation, road demolition or soil remediation.
-
Most popular related searches
Features and Benefits
- Operate efficiently with less wear due to its low-speed, high torque splined headshaft motor
- Improve job monitoring with the exclusive Vermeer TEC 2000® electronic control system.
- Put the spoils where you want them with the optional non-folding 8’/2.4 m or folding 13/4 m conveyors.
- Enhance productivity with the climate-controlled cab.
- Vermeer Vantage Track Extended Care Service Program offers an optional 3-year/3,000-hour or 5-year/5,000-hour warranty on the components of the closed loop hydrostatic systems.
- See your Vermeer dealer for comprehensive service and genuine Vermeer replacement parts.
A Tough Machine, Built to Last
The Vermeer® T855 Commander® 3 hydrostatic trencher is your rugged rock-trenching solution. Designed specifically for 6' to 12' (1.8 m to 3.7 m) rock-trenching jobs, the T855 Commander 3 is a great choice for utility, water, and sewer contractors.
At the heart of the T855 Commander 3 is a powerful 350 hp (261 kW) ATAAC Caterpillar C9 ACERT Tier 3 electronic engine that has the power to handle tough trenching jobs. The exclusive Vermeer Auto-tilt Track matches the machine to terrain conditions to help keep your operation running smoothly.
Combine these features with the TEC 2000.2® control system, a Rotary Power headshaft moto r with splined headshaft, and the Vermeer worldwide dealer support network, and you’ll see why Vermeer is a proven leader in heavy-duty rock-tr enching applications.
A Rotary Power radial piston hydraulic motor and s...

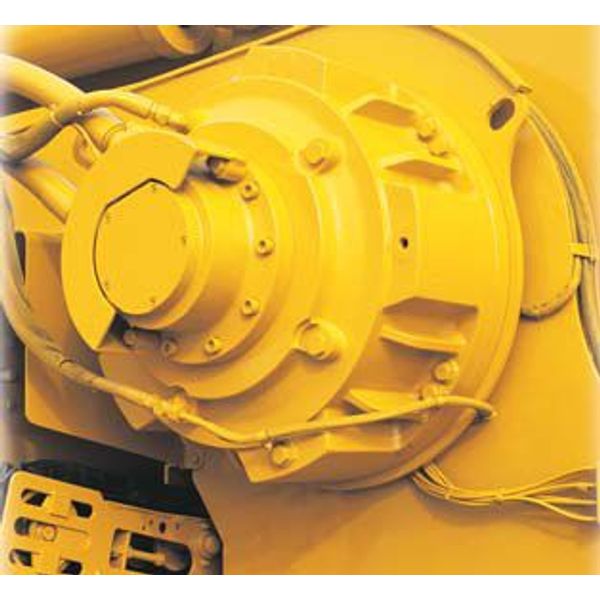

A Rotary Power radial piston hydraulic motor and splined headshaft produce lower speeds and higher torque — providing superior rock penetration and low chain and tooth wear for better production results.
Nonfolding 8` (2.4 m) or folding 13` (4 m) conveyo...
Nonfolding 8' (2.4 m) or folding 13' (4 m) conveyors offer users maximum flexibility in choosing where the spoil is deposited. The 13' (4 m) length gives users the ability to fold the conveyor for easy clearance and storage.
TEC 2000.2® control system monitors operating ...

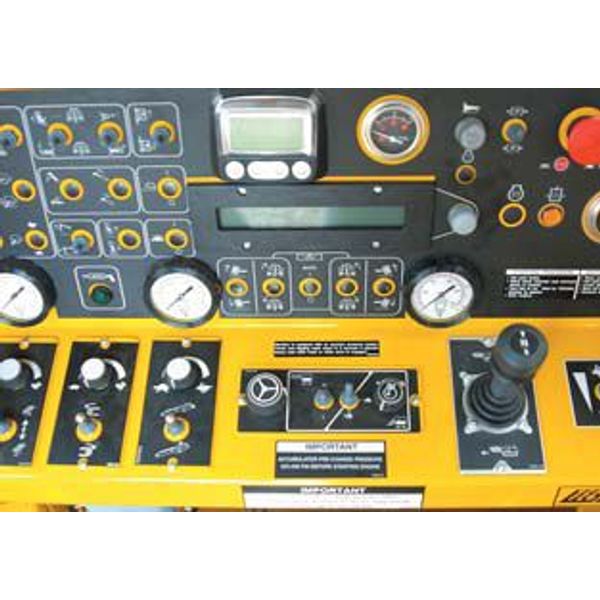

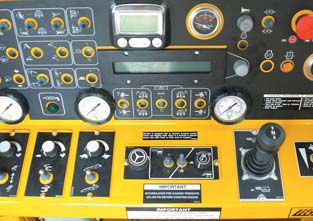

TEC 2000.2® control system monitors operating conditions, measures full-range ground speed and headshaft speed, and informs the operator of real-time machine performance for increased productivity and reduced wear to the machine.
The innovative Terrain Leveler® Surface Excava...

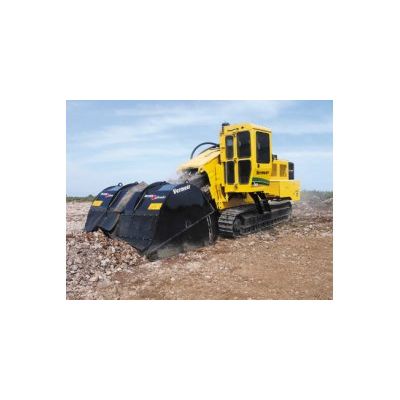

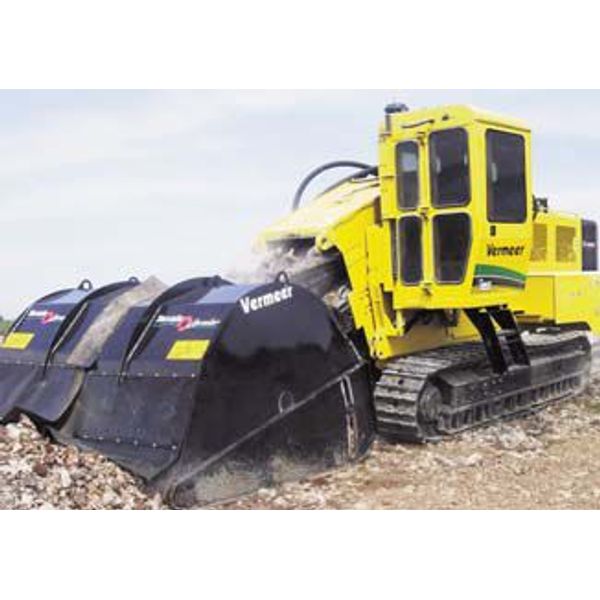

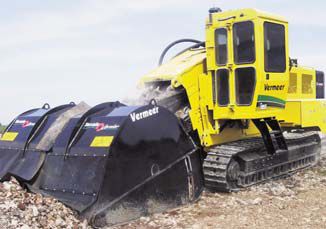

The innovative Terrain Leveler® Surface Excavation Machine offers unmatched production in a variety of applications, including surface mining, site preparatio n, over-burden removal, road construction/reconstruction, and soil remediation. The T855 Terrain Leveler SEM can cut an area up to 8.5 feet (2.6 m) wide and up to 32 inches (81.2 cm) deep in a single pass.
Specification
Transport Dimensions
Approach angle: 20°
Height: 131' – 150' (333 cm – 381 cm)
Length: 264' (670 cm) w/ no boom; 484' (1229 cm) w/ 12' (4 m) boom
Weight (tractor only): 65,000 lb (29,710 kg)
Width: 101' – 104' (257 cm – 264 cm)
Engine
Make and model: Caterpillar C9 ACERT Tier 3
Gross horsepower: 350 hp (261 kW)
Rated engine rpm: 2200
Number of cylinders: 6
Fuel tank capacity: 172 gal (651 L)
Operating range: 9.4 hr
Fuel consumption @ full load: 18.3 gph (69.3 L/h)
Max engine operating angle*: 40°
Air cleaner: Dry-type exhaust-aspirated
Aspiration: Turbocharged and air-to-air aftercooled (ATAAC)
Cooling medium: Liquid
Electrical system: 24 V DC
Oil filter: Full-flow
*Engine operating angle does not indicate safe machine operating angle
Tracks
Auto self-level: Yes
Ground pressure: 11.0 – 16.4 psi (75 – 113 kPa)
Tilt track available: Yes
Tilt track max angle: + / - 9° or + / - 12'
Track drive type: Dual-path hydrostatic w/ planetary transmission
Track length: 147' (373.4 cm)
Track pad type: Standard double grouser w/ dirt relief; Optional single or triple grouser
Track pad width: 20' or 24' (51 cm or 61 cm)
Track size: D6
Travel speed max (high range): 188 fpm (57 m/min)
Travel speed max (low range): 94 fpm (29 m/min)
Parking and emergency brake: Spring-applied, hydraulic release, wet disc brake
Service brakes: Hydrostatic
Conveyor
Belt width: 30' (76.2 cm)
Conveyor belt spe ed range: 0 – 917 fpm (0 – 280 m/min)
Conveyor belt style: Cleat or finger type, sidewalls, center guide rib
Conveyor length: 96' or 156' (244 cm or 396 cm)
Conveyor shift available: Yes
Conveyor shift distance range: 0 – 54' (0–137cm) w/ 96' (244 cm) conveyor; 0 – 114' (0 – 290 cm) w/ 156' (396 cm) conveyor
Conveyor style: Curved
Discharge direction: Right or left
Max discharge height: 57' (145 cm) w/ 96' (244 cm); 72' (183 cm) w/ 156' (396 cm) conveyor
Cab
Air conditioner / heater: Standard
Air suspension seat: No
AM / FM stereo w/ weather band: Optional
Elevating: Yes
Pressurized / filtered air: Yes
Roll Over M odule (ROM): Yes
Hydraulic System
Oil tank capacity: 145 gal (549 L)
Oil type: Vermeer HyPower 68 or HyPower 100
Pressure setting: 2500 psi (172.4 bar)
Pump flow max: 30 gpm (113.6 L/m)
Type: Pressure and flow compensated (load sensing)
Trencher Attachment
Weight range (tractor plus trencher): 82,000 lb - 94,000 lb (37,195 kg - 42,638 kg)
Boom depth options: 6', 8', 10', 12' (1.8 m, 2.4 m, 3 m, 3.7 m)
Sectionalized boom: Yes
Boom top rollers: Optional
Chain speed range: 311 – 600 fpm (95 – 183 m/min)
Cutting width range: 18' – 36' (46 cm – 91 cm)
Digging chain size: 4502 single chain and 4501 double chain
Idler diameter: 40' (101.6 cm)
Trencher drive type: 3 pumps and 1 motor hydrostatic
Terrain Leveler Surface
Excavation Machine
Weight (tractor plus attachment): 101,000 lb (45,813 kg)
Left / r ight tilt: + / - 9º or + / - 12'
Max cutting depth: 32' (81.3 cm)
Cutting width: 102' (259.1 cm)
Drum speed: 322 – 621 fpm (98 – 189 m/min)
Laser acceptable: Yes
Digging chain size: 4501
Drive type: 3 pumps and 1 motor hydrostatic
Rockwheel Attachment
Weight (tractor plus attachment): 102,000 lb (46,266 kg)
Max cutting depth: 54' (137 cm)
Cutting width: 6', 8', 10', 12', 14' (15 cm, 20 cm, 25 cm, 31 cm, 36 cm)
Drive type: 3 pumps and 2 motors hydrostatic turning a gearbox
