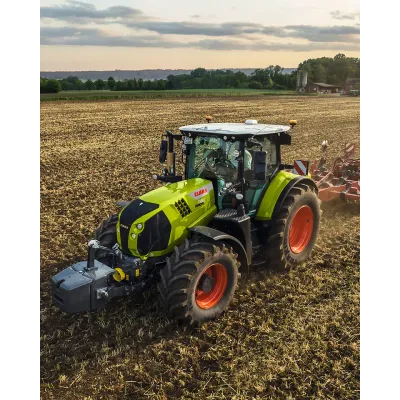

CLAAS ARION - Model 600 / 500 Series -Tractors
The CLAAS ARION 600 / 500 series of tractors offer a set of features engineered to optimize performance in agricultural settings. This series includes the ARION 660 model, which stands out due to its innovative functions designed after consultation with real-world ARION drivers. These enhancements have led the ARION 660 CMATIC to become a contender for the Tractor of the Year Midpower Award in 2024, emphasizing its advanced capabilities. The series is equipped with smart farming technology and provides substantial support through a comprehensive suite of digital solutions and service products. With a focus on user-centric design, the ARION 600 / 500 series is developed to meet the rigorous demands of daily field operations, ensuring efficiency and reliability while minimizing downtime.
Assisting you wherever it is needed.
The ARION 660 features a host of new functions developed by our engineers in consultation with ARION drivers. These factors earned the ARION 660 CMATIC a place in the finals of the Tractor of the Year Midpower Award 2024. When you drive to the fields everyday, you know exactly what you want.
-
Comfort concept with 4-point cab suspension protects driver and machine.
-
CEBIS version features user-friendly navigation and enhanced automatic functions to boost your productivity
-
CMATIC continuously variable transmission from CLAAS will change your mind forever.
-
The ARION with HEXASHIFT powershift transmission and CIS+ specification combine efficiency with simplicity.
-
Get more done with operator assistance systems like CEMIS and CEMOS, and data management
The ARION 660 scored highly on power and economy in the DLG Powermix test thanks to CMATIC transmission and 205 hp. The trade journal profi judged it to be an economical and extremely well-connected all-rounder in the field, around the yard, and on the road.
Always perfectly adjusted
Optimise your machine settings for all conditions with CEMOS.
Protects both driver and machine.
The suspension.
Full suspension. Four suspension points mean that the cab is fully isolated from the chassis, preventing impacts and vibration from reaching the driver. Longitudinal and lateral struts join the suspension points and keep the cab stable when turning corners or braking. An adjustable torsion strut allows you to choose between three different suspension hardnesses. The entire suspension system is completely maintenance-free.
PROACTIV front axle suspension: CLAAS suspension kinematics in ARION 600 / 500 tractors produce outstanding drive characteristics. Widely spaced suspension cylinders and roll stabilisation on bends guarantee vehicle stability and safety, while the double-acting suspension with load change compensation and 100 mm suspension travel deliver outstanding ride comfort.
The premium seat.
Warm and ventilated.
The range of Sears and Grammer seats includes a ventilated premium seat.
Active seat ventilation and heating make the seat feel comfortable whatever the weather
Semi-active suspension adjusts automatically to the weight of the driver
Longitudinal and lateral horizontal suspension
Shift your mind.
CMATIC continuously variable transmission
Forget everything you thought you knew about continuously variable tractor transmissions. CMATIC from CLAAS will change your mind forever.
Our continuously variable transmission increases your efficiency. The machine operates at the optimum speed at all times, autonomously – ensuring genuinely impressive ride comfort, yet simple operation. So you can focus all your attention on the job in hand and benefit from long-lasting transmission quality.
Efficient and user-friendly.
CMATIC
CMATIC delivers a consistently high level of efficiency in every application and in all speed ranges. Fully automatic transmission control is simple and convenient.
The benefits for you:
-
Completely smooth acceleration from 0 to 50 km/h (or 40 km/h), even under maximum load
-
Low fuel consumption on the road as maximum forward speed is reached at just 1,500 rpm
-
Powered zero mode makes it easy to stop on slopes and start off again without using the service brake
-
Two drive ratios which change the power flow and processes within the transmission
-
Drive ratio changes smoothly and automatically to optimise work without the driver having to intervene
-
Consistently high efficiency levels for low fuel consumption and maximum versatility in all applications
-
Efficient powershift transmission.
HEXASHIFT
With HEXASHIFT you can shift effortlessly through all six powershift speeds and the four automatic ranges using your fingertips, or you can shift automatically using the HEXACTIV auto-shift function.Overlapping powershift speeds allow the full output potential of the engine to be utilised and provide smooth range shifting on the road.
-
Data has long since become an indispensable resource. To profit from its full potential, you should take just as good care of your data as you do your machinery fleet. And that includes making sure all systems, machines and processes are meaningfully connected and the data generated is sent to the appropriate place for analysis.
-
Up to 16.8% lower fuel consumption.
CEMOS drivers are unbeatable.
CEMOS is the most comprehensive operator assistance system for tractors on the market. It helps you find the optimum settings for the tractor and implement. In a benchmark test, independent test institute the DLG confirmed that CEMOS increased the work rate (ha/h) by up to 16.3% and decreased fuel consumption (l/ha) by up to 16.8%.
Get more done.
Operator assistance systems and data management.
There is no substitute for your experience. It`s what allows you to respond quickly and appropriately to the challenges you face in your daily work. When you`re dealing with difficult terrain or changing soil conditions, you have to make decisions very quickly to get the job done to the right standard.
- Model: 630 HEXASHIFT
- Number of cylinders: 6
- Displacement (l): 6.8
- Max. output ECE R 120 (hp): 165
- Transmission: 24/24 HEXASHIFT (6 powershift speeds / 4 electronically controlled groups) + REVERSHIFT
