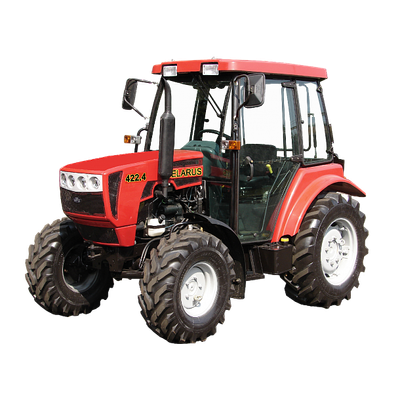

Belarus - Model 422.4 -Tractors
This tractor is intended for various agricultural operations coupled with mounted, semi-mounted and trailed machines, for hauling operations and for operations in industry. Small dimensions allow using the tractor in greenhouses and small rooms, low-contour land plots. The BELARUS 422 tractor is made on the base on BELARUS 622 tractor. Environmental standard Stage IIIa. Model: «LOMBARDINI» LDW2204. Power, kW (h.p.): 36,6 (50)
Most popular related searches
Engine
- Type: four-stoke diesel engine
- Model: «LOMBARDINI» LDW2204
- Power, kW (h.p.): 36,6 (50)
- Crankshaft rated speed, rpm: 3000
- Number of cylinders, pcs.: 4
- Displacement, l: 2,07
- Maximum torque, Nm: 125
- Specific fuel consumption at operating power, g/kWh: 329
- Factor of torque backup, %: 15
- Fuel tank capacity, l: 90
Transmission
- Clutch: dry, single-disk
- Gearbox: mechanical, with easy-engagement clutches
- Number of gears: forward/reverse: 16/8
- Travel speed: forward/reverse, km/h: 1,2-36,6/2,1-19,5
Rear PTO:
- continuous I, rpm: 540
- continuous II, rpm: 1000
- ground-speed I, rev/m of travel: 3,2
- ground-speed II, rev/m of travel: 6
Hydraulic lift linkage
- Versatile, remote-cylinder
- Lifting capacity at suspension point, kg: 2800
- Maximum pressure, MPa: 20
- Pump performance,l/min: 40
- Hydraulic system capacity, l: 22
Dimensions and weight
- Overall length, mm: 3450
- Width, mm: 1700
- Height to cabin top, mm: 2380
- Tractor base, mm: 1390
Track, mm:
- front wheels: 1390,1530
- rear wheels: 1410, 1510, 1560, 1660, 1730 ,1830
- Agrotechnical clearance, mm: 560
- Least turning radius, m: 3,9
- Operating weight, kg: 4000
Tire sizes:
- front wheels: 12,4R-16
- rear wheels: 360/70R24
- Wheel arrangement: 4х4
- Front lift linkage;
- Front PTO with shaft shank;
- Front ballast weights;
- Hitch hoses;
- TSU-1M tow hitch;
- Bracket with cutoff clutches.
