Foglia - Model 2000 - Trailed Harvester

Foglia - Model 2000 - Trailed Harvester

FromOrtomec srl

SHARE

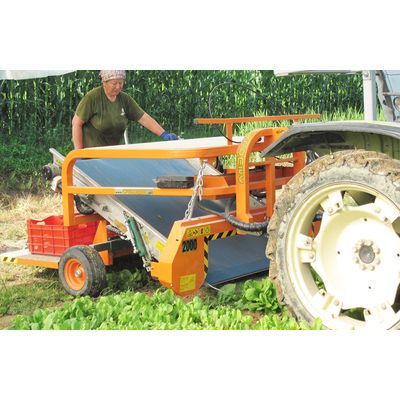

Harvester carried on third hitch point of the tractor. Minimum power required of 24 HP. Available harvesting widths from 120 to 180 cm. Band-blade cutting system. Available cutting systems: type A, in stainless steel, with useful height of 21 cm with 2 pulleys. or type B, in stainless steel, with useful height of 31 cm with 2 pulleys. Machine dimensions: length 225 cm, width 167/187/217 cm, height 110 cm.

Most popular related searches

babyleaf lettuce harvesting

harvesting system

babyleaf lettuce

tractor hydraulic

trailed harvester

Wheels positionable in track and in height, wheel size 16x6.50-8;
Weight: approx. 400 kg;
Conveyor belt frame in stainless steel;
Rear deck closable 90°. Length 80 cm;
Rigid upper box holder table;
PTO 540 independent hydraulic system with reservoir;
Cutting blade height adjustment with hydraulic control by means of single stainless-steel roller;
Cutting blade speed adjustment by means of manual control valve;
Cutting blade height adjustment with double control, one on the machine and one from the tractor;
Hydraulic conveyor belt with speed adjustment by means of valve;
Conveyor belt food-grade certified.
