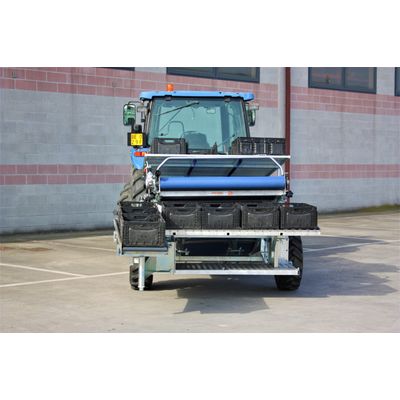

Foglia - Model 4000 - Trailed Harvester
FromOrtomec srl
Harvester carried on third hitch point of tractor. Minimum power required of 47 HP. Available harvesting widths: from 120 to 180 cm. The track is variable by shifting hubs/wheels from axle. Cutting blade height adjustment with hydraulic control by means of hydraulic/free rotation single roller with speed adjustment.
Most popular related searches
- Hot galvanised machine frame;
- Machine dimensions with deck open: L 330 cm x h 144;
- Rear deck closable 90°. Length 100 cm;
- 90° closable side box holder deck;
- Upper box holder table in aluminium;
- Total weight of machine: approx. 950 Kg;
- Ground clearance: 27 cm;
- Wheels size: (1) wheels 6.50-16 (H 76 cm.- L. 16 cm.); (2) wheels 10.0/75-15.3 (H 75 cm. – L. 23 cm.);
- PTO 540 independent hydraulic system with reservoir;
- Available cutting systems: type A, in stainless steel, with useful height of 21 cm with 2 pulleys; type B, in stainless steel, with useful height of 31 cm with 2 pulleys;
- Band-blade cutting system;
- Conveyor belt frame in stainless steel;
- Cutting blade speed adjustment by means of manual control valve;
- Hydraulic conveyor belt with speed adjustment by means of valve;
- Rotating brush for clearing belt in return phase;
- Conveyor belt food-grade certified.
