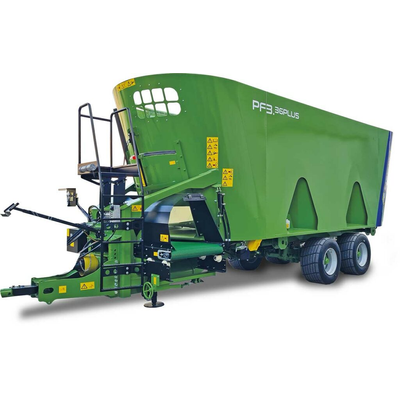

Faresin - Model TPF - Trailed Mixer Wagon
Trailed Mixer Wagons with one, two, or three vertical mixing augers with capacities from 5 to 46 cubic meters, featuring extreme simplicity and economy of use thanks to various automatisms and the implementation of advanced technologies that guarantee unprecedented ease of use and operational precision.
Trailed Precision Feeding (TPF) Mixer Wagons enable perfect and homogeneous mixes to be achieved quickly:
- S355 steel structure with 6-8 mm thick walls
- Bottom of mixing tub 15-20 mm
- Containment ring to prevent spillage of the mixture
- Inspection ladder for checking inside the tub
- Up to 3 augers and 46 m³ to meet all requirements
Versatility of discharge for every farm. Trailed TPF Mixer Wagons were born for this. The Plus and Profi versions feature a front-located drain with a very wide, honeycombed door that allows rapid product flow from the mixing tub to the trough. While the Classic version can only mount direct discharge.
The mats, with a width of 900 mm, can be placed in 8 different positions depending on the user’s needs during forage unloading and its exact distribution in the trough. Furthermore, they can be equipped with speed regulation for optimal batching of the mix.
- Bilateral discharge
- Bilateral front or rear discharge
- Sliding bilateral discharge
- Discharge with hydraulic extension
A key role, in trailed Mixer Wagons, is played by the gearbox, because of the many possibilities for varying the speed of auger rotation during mixing, cutting and unloading.
- Two-speed gearbox type that allows the operator to choose between two options of auger rotation depending on the type of work, managing power absorption from the tractor. Standard for Profi configuration.
- High-performance two-speed gearbox type and auger speed for recipes consisting of many dry ingredients.
- Two-speed gearbox type ideal for recipes with few wet ingredients and reduced power consumption due to a lower ratio.
The TPF line’s high maneuverability and maneuverability allow for quick machine movements even within stables of limited size and space. Fundamental characteristics of the frame are the axles and the load cells, in addition to the material of which it is composed, S355 steel.
- TPF Profi from two augers with double axle and tandem suspension 16 m3
- TPF Plus double axle option with rocker arm or 18 m3 Bogie suspension
- Up to 3 fixed or steered axles
- Mechanical or hydraulic support foot
- Electronic weighing system from 3 to 5 sensors
- Air or hydraulic braking system
Ease of execution and rapid mixing under all conditions. TPF Classic prepares excellent quality blends with extreme speed to precision. Compact and handy, it is designed as a first approach to precision feeding. The rear-positioned axle provides good weight balance, and the direct side exhaust, also on both sides, can be placed in various positions.
TPF Plus features the front-mounted discharge equipped with a bilateral mat , which allows for rapid flow of unifeed into the trough, and 8-mm-thick mixing tub walls .As standard, it is available with a single axle with the option of mounting one Additional for capacities above 18 m3. This machine can be Also equipped with Litter Thrower for litter distribution.
TPF Profi was created to be the flagship version of the trailed Faresin machines, a complete machine that adapts to every requirement of even the most demanding farms. It features bilateral front unloading belt, the mixing tub with 8 mm thick walls and subframe as standard. Optional hydraulic or pneumatic braking system while tandem suspension is standard on two-auger versions for more comfortable transfers and greater maneuverability. Four load cells are installed on the TPF Profi trailed chassis to ensure accurate weighing of all components of the mix, even for heavier rations.
- 3 augers
- Capacity from 30 to 46 m³
- Vertical mixing
- Models: 3.30, 3.36, 3.40, 3.46
- Configurations: Profi
