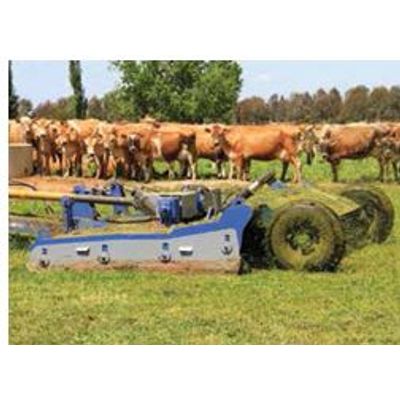

Gason - Trailed Proper Topper
FromAF Gason Pty Ltd
Suitable for 80 to 180HP Tractors (Subject to Compatible Tractor Specifications). The Gason Trailed Proper Topper continues the tradition of the Proper Topper designed by Chris Grow Engineering. The 3 point linkage twin rotor model is suitable for dairy, horse studs, sheep and beef properties.
Most popular related searches
tractor attachment
tractor
cutting deck
beef product
horse
mower unit
adjustable windrower
windrower
windrowing
sheep
10ft Twin Rotor Trailed Proper Topper
PT2R2920-TR (GPN: 225031-01, 225031-02 with Suspension)
- Width of cut - 2.92m (9`7")
- Deck width - 3.03m (9`11")
- Overall width - 3.15m (10’4”)
- Trucking - 3.2w x 2.2d x 1.6h
- Shipping 3.2 x 2.2 x 1.6 (11.3 cubic m)
- Weight - 1700 kg
- PTO Speed - 540 rpm
- Spring suspension to base of front hydraulic ram (GPN: 225031-02)
12ft Twin Rotor Trailed Proper Topper
PT2R3570-TR (GPN: 225031-03, 225031-04 with Suspension)
- Width of cut - 3.57m (11`9")
- Deck width - 3.67m (12`)
- Overall width - 3.78m (12’5”)
- Trucking - 3.8w x 2.5d x 1.6h
- Shipping 3.8 x 2.5 x 1.6 (15.2 cubic m)
- Weight - 2300 kg
- PTO Speed - 1000 rpm
- Spring suspension to base of front hydraulic ram (GPN: 225031-04)
- Designed for sharp, clean cutting of pasture, with discharged cuttings spread evenly behind without windrowing
- Adjustable rear deflectors for variable position rear discharge even spread
- 2 Position (open or closed) rear guards - manual operation
- Optional suspension rougher conditions
- Improve your pasture and increase production with regular topping of paddocks with the Gason Proper Topper
Standard Features
- Deck Material - 6mm Deck, fully welded top with 8mm side plates
- Deck Profile - Folded easy clean deck design including an open back for more even spread of cutting
- Gearbox - 130HP Bare-Co 3 Gearbox driveline incorporating torsion rubber couplings
- PTO Shaft - Bare-Co 8 Series PTO
- Clutch - 4 Plate clutch with over-run
- Finish - 2 Pack painted deck
- Skids - 8mm height adjustable side with simple "lock and dog" adjustment including 100 x 12mm hardened steel skids
- Rotor Bar - 100 x 11mm spring steel rotor bars
- Blades - 100 x 9mm swing back blades on hardened bushes
- Tractor Attachment - Heavy duty tow pull
- Front & Rear Chains - Galvanized safety chain with rod replacement system
- Tyres - Heavy duty flotation tyres 10/75-15.3 14 PLY
- Rear Safety Guard - 2 Position (open or closed) rear safety guards - manual operation
- Dual-mulching blade kit for a finer cut and better spread of material
