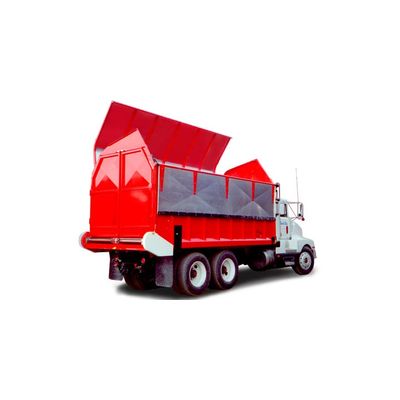

Versa - Trailer & Truck Mount Silage Box Hauler
Each Versa Box Silage Hauler is a heavy duty, all-steel welded box that is available as a trailer or truck mounted model. These live-bottom silage haulers have an unloading capacity of up to 36 feet per minute and are built to withstand the longest days on uneven terrain. Each Versa Box is exclusively designed to fit your farm needs. You have the options of right-hand or left-hand feed, a variety of side enclosures and fixed or automatic, hydraulic roof top openings. The Versa Box is available from 16 feet to 40 feet long.
Most popular related searches
Silage Hauling Box Dimensions & Specifications
- Width (outside): 102 in (2600mm)
- Width (inside): 94.5 in (2400mm)
- Length: 16 – 40 ft (4 – 12 m)
- Height (varies with tire size): approximately 162 in (4115mm)
- Truck box weight: approximately 1780 lbs + 312 lbs per foot
- Trailer box weight: approximately 6800 lbs + 312 lbs per foot
- Unloading capacity: 36+ feet per minute
- Holding capacity: approximately, corn silage 65% moisture, 1700 lbs per lineal foot
(subject to change without notice)
- Hydraulic wet kit (optional): up to 55 GPM (210 LPM) at full engine RPM includes PTO, pump, controls, & reservoir
- Pressure setting: 2800 PSI (193 BAR)
- Electrical: 9-way trailer plug
- Road lights: compliant with regulation
- Suspension: air-ride or spring
- Wheels & tires: customer choice
- Wheel brakes: air, “S” cam 7.5 in x 16 in
- Main drive: hydraulic high torque
- Drive chains: four strands, 30,000 lbs WR78 barrel
- Heavy-duty drive shafts: high-alloy, special separate, dual-drive slat & chain sets
- Roof tarp cover: optional automatic tarp covering for open-top designs
- Truck mounts and trailer sizes: 16 – 40 ft
- Suspension types (trailers): air ride or spring
- Rear doors: barn-style, automatic open & close, auto-operated
- Main Chain tensioners: spring, adjustable
- Roof: left-hand or right-hand, fixed or automatic open & close roof
- Open Top side extensions: straight or tipped-in
- Side enclosure: lefthand or righthand automatic side enclosures
- Front field opening door: manual or automatic operated
