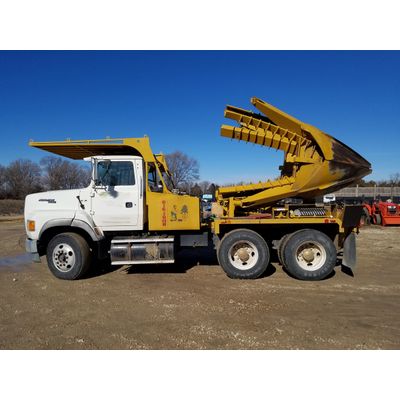

Big John - Model 45D - Truck Mounted Tree Transplanters
From Truck Mounted Tree Transplanters
The BIG JOHN Model 45D truck mounted tree spade is used by nurseries, landscapers and the tree moving professional. The 45D gets the job done. Whether you’re B&B’ing or what we call “Dig & Delivering”, the appeal of the M45D is in its compact yet sturdy design and perfect for moving 3' - 4’ caliper trees.
Product Details
Climbable Towers
Our towers are designed with steps along the inside of the spade to give canopy access during a dig instead of only after the dig when the tree is lowered to the deck.
Stabilizing Pads
Our stabilizing pads create a wider base during a dig, better distributing the weight than competitors' spades so you can use more down pressure during a dig.
Large Water Tank & Hose Attachment
On-board water storage provides lubrication for tough digging conditions needed for unprepared digging conditions. Our standard hose attachment makes cleaning and maintaining your spade a snap as well as providing water during a long-distance move if needed.
Internal Leveling Pads
Correct for trees that have a natural tilt with internal leveling pads that allow you to adjust the spade's digging position before relocating the tree to its final destination
Heavy Duty Gate Hinges
Gate hinges designed for stressful conditions, our skid steer spades feature heavy duty gate hinges that beat the competition for longevity.
Heavy Duty Blade Edges
Our blade edges are the toughest in the business, cutting through not only tough root systems but allowing you to dig in tough soil conditions. Dig in just about any conditions with ease and minimal annual maintenance.
Easy to Use and Maintain
Anyone can learn how to operate a BIG JOHN spade with minimal instruction and successfully dig a tree in a matter of minutes. Maintenance requirements are simple, quick, and affordable with a minimal time commitment to keep your spade at peak performance.
Durable Slide Blocks
Made with top grade plastics for heavy duty use, our slide blocks dig for thousands of tree moves with ease and simplicity. Fewer moving parts, no bolts to rust and no small plastic parts to keep track of make the simple design of BIG JOHN spades last decades longer.
Climbable Towers
Our towers are designed with steps along the inside of the spade to give canopy access during a dig instead of only after the dig when the tree is lowered to the deck.
Specifications
The BIG JOHN Model 45D truck mounted tree spade is used by nurseries, landscapers, and the tree moving professional. The 45D gets the job done. It's compact yet sturdy design is perfect for moving 3-4' caliper trees. The Model 45D comes standard with a 125 gallon water tank and 25 gallon hydraulic oil reservoir.
SPECIFICATIONS: 45D
- Nominal Tree Trunk Diameter: 3″ – 4″
- Weight of Transplanter: 5,800 lbs
- Height Closed (for Transportation): 11′ 2″
- Width Closed (for Transportation): 8″
- Nominal Root Ball Width: 42″
- Root Ball Depth: 38″
- Root Ball Weight: 1,500 lbs
- Hydraulic Pressure Relief: 2,500 psi
- Hydraulic GPM Rating: 12 – 15 GPM
- Single Axle Truck Length: 84″
- Minimum HP: 250
