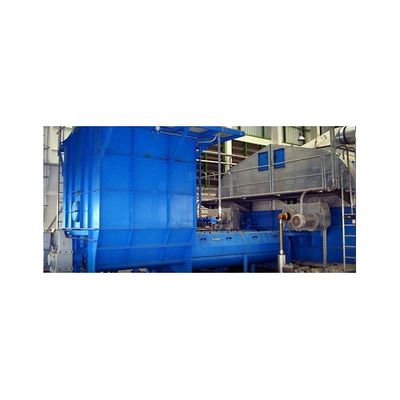

PonndorfModel RK -Tubular Bundle Dryer

SHARE

Our tubular bundle drier of the RK series is an indirectly heated contact drier. It has especially been designed for free flowing materials like Malt spent grains, Maize germs, maize hulls, maize gluten and maize flour, Crushed soybeans, crushed rape seeds and grapeseeds, Mineral granulates, Sesame, rice flour and sunflower seeds.

Most popular related searches
  • Heated by steam
  • 140 bis 210 °c steam inlet temperature
  • 3000 to 3360 kj thermal energy consumption per kg evaporated water
  • 25 up to 2500 m² heating surface
  • 3 to 6 kg/m²h specific drying rate
  • Inspection openings
  • Mounted on a sturdy supporting frame
  • Certified by tüv (german association for technical inspection)
  • Wide choice of weldable construction materials, e.g. 1.4301 or 1.4571
  • Two tubular bundles paired into a single housing
  • Instrumentation and control system for an almost automated drying process
  • Complete insulation for outside installation
