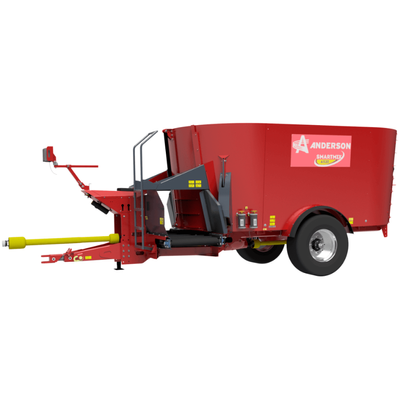

Anderson - Model A520FD -Twin Auger Mixer
The Anderson pull type A520 twin auger mixer (conveyor discharge) has the ability to mix the widest variety of ingredients. Process large amount of hay, even complete square and round bales of baleage. Available with several discharge options. Whether your rations are designed to increase milk production of dairy cows or minimize variation in feed for each group you feed, vertical mixer will help optimize the dry matter and nutrient intake of your herd.
Most popular related searches
twin auger mixer
milk yield optimization
cow milk production
shear bolt subsoiler
round baling
milk yield
dairy cattle
vertical feed mixer
feed mixing
milking dairy
- Capacity 520 pi3 à 666 pi3.
- Reinforced tub fl oor provides longevity of the tub and also to the load cells by equalizing the weight uniformly.
- TRI-CUT™, auger with 2-position adjustable and reversible knives (10 standard) and 2 sweeping dispensers ensuring a 30% faster and more consistent discharge.
- Discharge options: Side trap or front conveyor.
- Carbide treated self-sharpening tungsten knives.
- Industry’s fi rst hydraulic TRUE-CUT™ restrictor blades allows the operator to engage and disengage during the mixing process preventing all risks of overprocessing feed.
- The DG500 indicator is a universal, programmable weighing indicator for recipes, dispensing and data storage. It guarantees an extremely precise weighing thanks to the protected load cells and strategically located under the tank. Compatible with the DTM suite.
- 3-point scale system.
- Rolled side walls (not bent) for better fl ow of material, avoiding restriction around auger and naturally increased sturdiness.
- SMART CONTROL remote control (optional) provides you full wireless control to: customize weighing system and recipe, hydraulics, speed of belt etc.
- Optional 2 speed gearbox.
- PTO shaft - Standard specification: 540 RPM 1" 3/8 Z6
- PTO shaft - Option specification: 1000 RP m 1" 3/8 Z21
- 2 speed Gear Box: Optional
- 2 Speed Gear Box and ratio: C3A-R, 1;1,5 54in(888cm)0 RPM C3A-R, 1,8;2,7 1000 RPM
- Minimum PTO HP Requirement - Low Speed: 80
- Minimum PTO HP Requirement - High Speed: 120
- Auger RPM – Low Speed: 27 RPM
- Auger RPM – Standard High speed: 41 RPM
- Standard planetary model and ratio configuration: 1602 @13.4
- Optionnal Planetary: N/A
- Floor Thickness (AR235 grade or equivalent): 5/8 in
- Sidewall Thickness (AR235 grade or equivalent): 1/4 in
- Flighting Thickness (AR235 grade or equivalent): 5/8 in
- Standard knives per auger: 6 / 10 optional
- Driveline security: Shear bolt
- Hydraulic flow requirement: 10-15 US gal/ m in 37-56 L/ m in
- Hydraulic pressure: 160-200 bar (2300-2900 psi)
- Load cell: 3
- Scale system: DG500 (standard)
- Machine Weight (empty) - STD configuration: 13 100 lb (59in(150cm)41 kg)
- Utility load capacity: 15 080 lb (6839 kg)
- Axle - Standard specifications: Single
- Axle - Optional specifications: N/A
- Wheels - Standard specifications: 385/65R22.5-20
