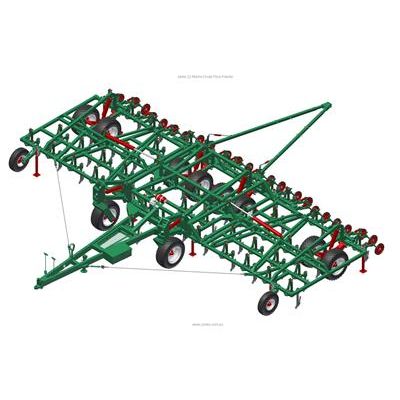

Janke - Universal Chisel Plow
Chisel Plow is now available again. The Janke Chisel Plough/Planter can be used as a Primary Tillage impement, Direct Drill Planter or a cultivator. Grower input has led to the excellent trash clearance, high breakout tyne assemblies and an unmatchable robust frame construction. Whether you have some major working-up to do, or Direct Drilling into huge amounts of stubble, or Ciltivating, the Janke Chisel Plough will handle these conditions with hassle-free operation and dependability.
- 760mm (30") underframe clearance and strategically placed tyres give excellent trash clearance and effective weed kill.
- Janke`s huge 636kg (1500lb) Breakout Force Tyne Assembly. Tyne shanks are 75mm x 25mm with vertical pin adjustment. Get the sweeps or direct drill points, or both.
- A large tool box is standard on all Janke Universal machines.
- Large heavy duty pull takes all the draft force 636kg (1500lb) Breakout tynes can throw at it. Also fitted with a handy pull basket, carry uncovered stumps, rocks or unused tynes or shanks.
- Screw adjustable levelling - simple, fast and heavy duty.
- Janke`s large depth indicator with reflectors for night vision. Large phasing cylinders are fitted with level trimming.
- Ground Hog Tyres fitted to 6-stud heavy duty axles with walking beams.
Specifications
- Tyne Spacings: 300mm
- 4-tyne beams: 100 x 100 x 9mm RHS
- Spacing between beams: 915mm between Beams 1 & 2, 3 & 4. 1320mm between Beams 2 & 3
- Hydraulic F1500 tyne assembly: 636kg (1500lb)
Features of Hydraulic Tyne
- Reliable Janke Design
- 75 x 25mm Spring Steel Tyne Shanks
- Tungsten on lower front face of Direct Drill Tyne Shank
- Vertical Shanks for better trash flow
- 636kg (30") Underframe clearance
- Pin or stud vertical height adjustment
- 14" Chisel Plough Sweeps
- Large Tool Box
- Carry Basket in pull
- Wheel assemblies: Large Floatation Tyres
- Tandem heavy duty axles on main frame
Hydraulics
- Phasing Cylinders with Depth Stop & levelling Adjustment
- In-line Micro Filters, clean phasing circuit
- Wing fold cylinders with float capacity
Options avaliable
- Janke Direct Drill points and Shanks
- Trailing press wheels or Inframe press wheels
- 25mm, 38mm 50mm or 100mm in width
- Telescopic mount brackets for trailing press wheels
- Folding floating single row harrows - fully adjustable
- Air seeder pull for tow behind seeders (advise style or Air Cart on order)
- Wing stabiliser wheels-screw adjustment recommended for larger wings
Universal Hydraulic Chisel Plough/Planter (Width 9m)
Specifications:
- No. of tynes on center (c) and on wing (w): 12c, 9w
- Single heavy duty axles on wings
Universal Hydraulic Chisel Plough/Planter (Width 10.8m)
Specifications:
- No. of tynes on center (c) and on wing (w): 12c, 12w
- Tandem heavy duty axles on wings
Universal Hydraulic Chisel Plough/Planter (Width 12m)
Specifications:
- No. of tynes on center (c) and on wing (w): 16c, 12w
- Tandem heavy duty axles on wings
Universal Hydraulic Chisel Plough/Planter (Width 13.2m)
Specifications:
- No. of tynes on center (c) and on wing (w): 16c, 14w
- Tandem heavy duty axles on wings
