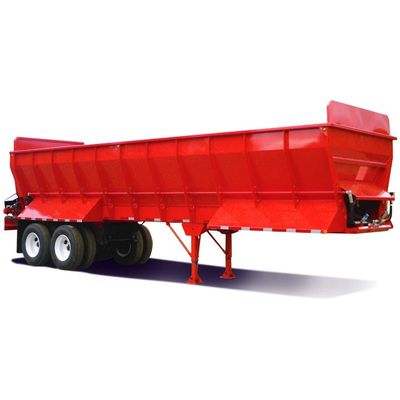

VersaV Bottom Spreader

SHARE

Versa Spreaders are field-proven with manure, compost, wood chips and more. The ‘V’-bottom spreader is designed with an all-welded chassis frame and heavy-duty main-drive system. Its toughness  is unparalleled in the industry with a dual hydraulic planetary and 50,000 pound tinsel chain. Dual-plate spinners power a 50 foot even spread pattern for accurate metered distribution. The Versa Spreader handles all types of materials from heavy and light to coarse and fine with a holding capacity of 40 cubic yards. By design, the Versa Spreader has good traction from beginning to end of load

Most popular related searches
  • Width (outside): 98 in (2489 mm)
  • Width (inside bottom): 48 in (1220 mm)
  • Length: 34 ft (10.4 m)
  • Height: 127 in (3226 mm)
  • Weight: approximately 17,000 lbs
  • Holding capacity: 40 cu yds (31 cu m)
(subject to change without notice)
  • Hydraulic wet kit (Optional): up to 55 GPM (210 LPM) at engine RPM includes PTO, pump, controls, & reservoir
  • Pressure setting: 2800 PSI (193 BAR )Electrical: 9-way trailer plug
  • Road lights: compliant with regulation
  • Suspension: air-ride or spring
  • Wheels & tires: customer choice
  • Wheel brakes: “S” cam 7.5 in x 16 in air released
  • Main drive: dual hydraulic motor & planetary
  • Drive shaft: 4 in diameter splined
  • Main chain: WR-124, 50,000 lb, ultimate strength
  • Slat: .63 in x 3 in flat bar
  • Spinners: dual 22 in diameter with replaceable abrasion resistant wear plates
  • Optional automatic tarp for roof cover
  • Up to 50 foot (15.2 m) spread pattern
  • Good traction to end of load by design
  • Spinner shut-off for end of field turns & road side unloading
  • Adjustable, metering rear door for accurate even distribution per acre
  • Main chain tensioners: spring, adjustable
  • All electric controls in cab
