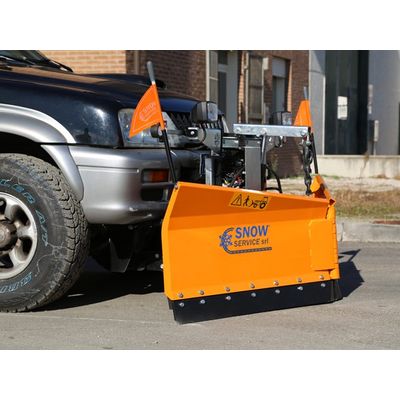

Snow Service - Model PKV - V Shaped Plow for Pick-Up
The PKV V-shaped plow by Snow Service is expertly engineered for pick-up trucks and vehicles with a gross vehicle weight (GVW) rating exceeding 3.5 tons. Crafted entirely from high-strength steel, this plow features a quick hitch plate to facilitate rapid and effortless attachment. Its central blade is designed from steel curved metal sheets with independent, externally hinged wings. The plow's cutting edge is available in wear-resistant steel or Neoprene upon request. Neoprene fenders serve as a shock absorption system, positioned between the blade and the cutting edge. The plow's operation is managed hydraulically, equipped with two double-acting cylinders for blade movements and a single cylinder for lifting. A 12V/24V electro-hydraulic power unit installed on the snowplow powers the system. Handling is managed via an electric push-button panel with an appropriately long cable for in-cabin installation, with an optional wireless radio-controlled unit. Standard accessories include warning poles, high beams, parking legs, and a steel wear-resistant cutting edge, while optional features offer Neoprene cutting edges and radio-controlled power units.
V-shaped plow designed to fit pick-ups and vehicles of medium/low power range with a GVW > 3.5 T. Completely made of high-strength steel and equipped with quick hitch plate for easy attachment. Central blade body made of steel curved metal sheets and independent external wings hinged on it. Cutting edge in wear resistant steel or, on request, in Neoprene. Shock absorbing system by means of Neoprene fenders installed between the blade and the cutting edge.
Mode of operation of the plow for pick-up
Hydraulically driven, through N. 2 hydraulic double-acting cylinders for the opening/closure movements on the blades and N. 1 cylinder for the lifting movement.
Power supply
12V/24 Volt electro-hydraulic power unit installed on the snowplow.
Handling settings
Control of the plow by means of the electric push-button panel, with cable of appropriate length to be installed in the cabin. As an alternative option, possibility to install a radio-controlled power unit (wireless).
Accessories standard version – V-plow for pick-up
Warning poles, electro-hydraulic power unit with push-button panel, high beams, parking legs, steel wear resistant cutting edge.
Optional features
Radio-controlled power unit, Neoprene cutting edges.
For further information on the PKV – V shaped plow for pick-up and for a custom-made offer do not hesitate to directly contact us or fill the "Contact" form on this page!
