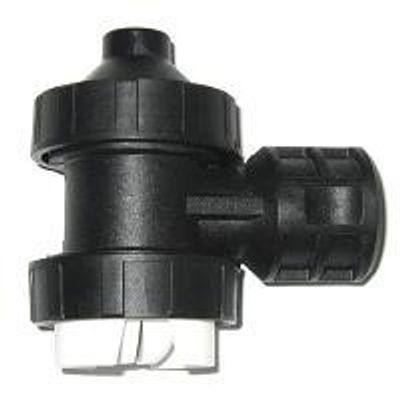

VeriVolume - Variable Flow Rate Liquid Fertilizer Nozzle
FromSprayTarget

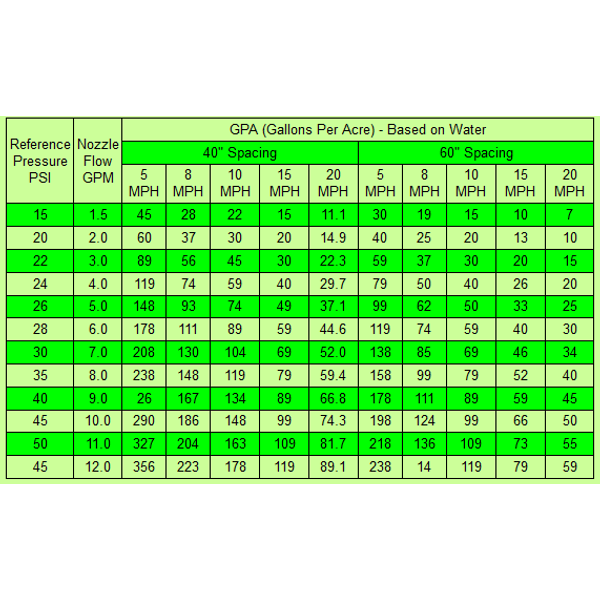

Flow rate variable from 1.5 to 12 GPM as varying pressure from 1 5 to 45 PSI. Wide range of application rate (10 - 80 GPA @15 MPH) achievable with one nozzle. Flow rate controllable on the go. Fast response to the rate change. Flat fan spray with tapered edge and extra wide spray angle. Spray angle of 140° constant over the range of flow rates.
Most popular related searches
- Spray height variable from 30 to 60 inches
- Optimum droplets for uniform coverage and drift reduction
- Uniform coverage along the spray boom and travel direction
- 3/4" cam-lock quick coupler or 1/2" NPT
- Compatible with pressure regulators or automatic rate controllers
- Adaptable to conventional spray system • Compatible with GPS/GIS
- Excellent chemical and wear resistance
- Flexible and large orifices allow significant reduction in nozzle plugging
- Flow Rate Range: 2.0 - 12.0 GPM
- Spray Angle: 140 Degrees
- Droplet Size: Extremely coarse
- Spray Pattern: Flat fan spray with tapered edge
- Inlet Connection: 3/4" Cam-lock quick coupler
- Spray Pressure: 15 - 50 PSI
- Max. Pressure: 100 PSI
- Material: Excellent chemical and wear resistance
- Flexible and Large Orifice: Minimum clogging
