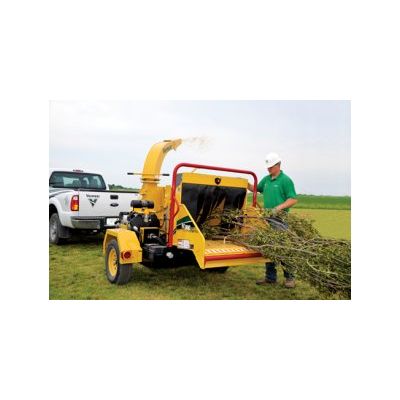

Vermeer - Model BC900XL - Brush Chipper
From Brush Chippers
The new Vermeer BC900XL brush chipper was designed to eliminate the guesswork out of chipping. No chucking. No ducking. Just smooth chipping performance. Able to chip heavily branched material up to 9” (23 cm) in diameter and 14” (35.5 cm) wide, the BC900XL is ideal for line clearing and general clean-up needs. In combination, the Vermeer exclusive SmartFeed system, and its 40 hp (29.8 kW) Kohler engine, pulls in and processes difficult material.
-
Most popular related searches
Features & Benefits:
- Protect your engine with the SmartFeed system, which monitors engine speed and stops or reverses the feed rollers if needed.
- Provides operator safety with the patented bottom feed stop bar. The four-position upper feed control bar with dual stop positions and forward / reverse feed positions mounts over the feed table and enables the operator to stop the feed rollers and select forward or reverse operations.
- Protect your investment with a 1-year/1,000-hour limited warranty.
- See your Vermeer dealer for comprehensive service and genuine Vermeer replacement parts.
A chipper that doesn’t play games.
A chipper that doesn’t play games.
Chuck and duck sounds like a bad school yard game – but when out chipping, the last thing you want to do is leave your safety to chance. That is why the new Vermeer BC900XL brush chipper was designed to eliminate the guesswork out of chipping. No chucking. No ducking. Just smooth chipping performance.
Able to chip heavily branched material up to 9' (23 cm) in diameter and 14' (35.5 cm) wide, the BC900XL is ideal for line clearing and general clean-up needs. In combination, the Vermeer exclusive SmartFeed system, and its 40 hp (29.8 kW) Kohler engine, pulls in and processes difficult material. Standard safety features such as an upper and bottom feed stop bar, keep operators safe while chipping.
Whether purchasing your first chipper, stocking a rental yard or adding to a fleet, the Vermeer BC900XL brush chipper is soon to be the preferred choice.
1: 40 hp (29.8 kW) Kohler gas engine. The BC900XL is equipped with a Kohler Command CH1000 gas engine with no-spill oil filter change, providing 40 hp (29.8 kW) to process branches and ease of serviceability.
2: Operator safety. Combined with the patented bottom feed stop bar is the four-position upper feed control bar with dual stop positions and forward/reverse feed positions. Mounted over the feed table, it enables the operator to stop the feed rollers and select forward or reverse operations. Dual reset/hold-to-run buttons allow the operator to readily reset the bottom feed stop bar.
3: The patented SmartFeed system helps increase operator productivity while reducing strain on vital engine parts. The feedsensing control system monitors engine rpm and automatically stops and reverses the feed roller when feeding larger, hardwood material.
4: The 1-year/1000-hour limited warranty offers you peace of mind.
5: A large rectangular 9' x 14' (23 cm x 35.6 cm) feed opening helps boost productivity by reducing the need to trim heavily branched material before feeding it into the chipper.
Specifications
General
- Weight: 2920 lb (1324.5 kg)
- Transport length (feed table up, tongue in): 11.7' (3.6 m)
- Transport width: 79.5' (201.9 cm)
- Transport height: 101.5' (257.8 cm)
Engine
- Make and model: Kohler Command CH1000
- Horsepower: 40 hp (29.8 kW)
- Max torque: 61.5 ft-lb (83.4 Nm)
- Fuel type: Gas
- Number of cylinders: 2
- Cooling medium: Liquid
Capacities
- Fuel tank: 15 gal (56.8 L)
- Hydraulic tank: 6.8 gal (25.7 L)
Cutting System
- Disc size: 33' dia. x 1' wide (83.8 cm dia. x 2.5 cm)
- Speed: 1400 rpm
- Knives: Two A8 chipper steel
- Shear bar: Two usable edges
Feed/Discharge System
- Infeed throat/feed capacity: 9' x 14' (23 cm x 35.6 cm)
- Infeed opening: 32' x 46' (81.3 cm x 116.8 cm)
- feed table length: 25' (63.5 cm)
- Feed table height: 29.5' (74.9 cm)
- Feed roller style: Single horizontal
- Infeed rate: 140 fpm (42.7 m/min)
Chassis
- Frame: 3/16' x 5.6' (.5 cm x 14.2 cm) Z channel
- Tires: ST215/75R14 Load Range C
- Axle/Suspension: 3500 lb (1587.6 kg) rubber torsion
Electrical
- System voltage: 12 V
- Lights: LED stop, turn, tail, license
