Vermeer - Model SC852 -Stump Cutter

• Maximizes cutting width because a unique four-bar linkage moves the cutter wheel away from the machine as the boom drops.
• Get into tight spots – side-mounted controls are easy to reach, and an auxiliary control station lets the operator lead or follow the machine through narrow confines.
• Reduce maintenance time through features like hinged doors and removable panels that give you easy access to service pumps and a direct drive hydrostatic pump that eliminates clutch and belt drive issues.
• Protect your investment with a 3-year/3000-hour extended limited warranty on applicable gearboxes and driveline, and a 1-year/1000-hour Vermeer equipment limited warranty.
• See your Vermeer dealer for comprehensive service and genuine Vermeer replacement parts.

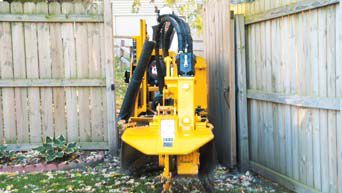

Stump cutters tend to be known for their power, but not so much for their agility. The Vermeer SC852 rubber-tire stump cutter has been designed to offer both. This sleek model can fit through a 36" (91.4 cm) gate, but still provides 85 (63.4 kW) horses of pure power to make short work of any stump in its path.

The SC852 moves easily through your jobsite with a top speed of 150 fpm (45.7 m / min), then uses creep control to ease into the right position for cutting. On top of that, it boasts a full 9" (22.9 cm) of ground clearance, so uneven terrain doesn’t have to slow you down.

For tight conditions in both residential and off-road applications, the SC852 with standard all-wheel drive moves in and out easily — to get the job done.

High cutter wheel moves away from the machine as the boom drops, increasing the maximum cutting width. The SC852 gives you a cutting height of 31" (78.7 cm) above ground and 25" (63.5 cm) below — the deepest cut in its class.

Front-mounted controls offer maneuverability in confined spaces by allowing the operator to walk in-line with the machine.

Ground clearance allows plenty of room for chip containment, while the rounded chip blade moves chips around the jobsite easily, reducing the need for manual chip moving. A wide wheel base provides stability; a differential lock on the 4WD system can be disengaged for tight turning.

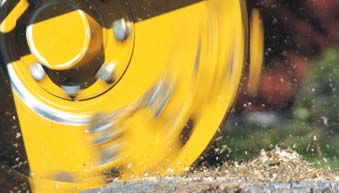

Yellow JacketTM cutter system provides easy serviceability and extended pocket and tooth life.

Direct drive hydrostatic pump and gearbox eliminates clutch and belt-drive maintenance. Cutter wheel stopping time is reduced with no-maintenance hydrostatic braking.

Easy access to daily service points. Other maintenance areas can be reached easily through hinged doors and removable panels.

General

Weight: 4100 lb (1859.7 kg)
Length (with cutter guard): 12.3` (3.7 m)
Width (with dual tires): 56" (142.2 cm)
Width (without dual tires): 35" (88.9 cm)
Height: 76.5" (194.3 cm)
Outside turning diameter: 18` (5.5 m)

Engine

Make and model: Cummins B3.3TAA
Gross horsepower: 85 hp (63.4 kW)
Maximum torque: 224 ft-lb (303.7 Nm) @ 1600 rpm
Electrical system: 12 volt
Fuel-tank capacity: 13.5 gal (51.2 L)

Hydraulic System

Oil-tank capacity: 14 gal (53 L)
Oil type: Vermeer HyPower 68
Oil cooler: Standard
Cutter Wheel Drive Train
Wheel diameter: 23" (58.4 cm) without teeth
Wheel thickness: 1.13" (2.9 cm)
Drive: Hydrostatic direct drive gearbox
Tooth style: Yellow Jacket Cutter System
Number of teeth: 26

Cutting Dimensions

Above ground level: 31" (78.7 cm)
Below ground level: 25" (63.5 cm)
Straight line: 72" (182.9 cm)
