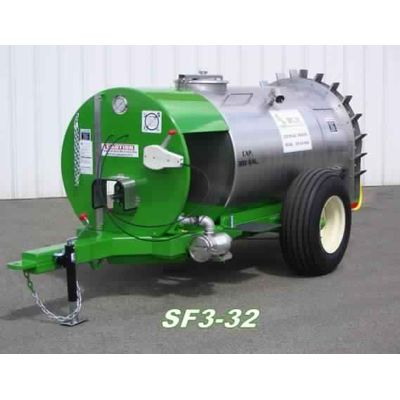

D & D - Model SF-32-300 Gallon - Vineyard Air Sprayer

Tank: 300 gallon round 304 stainless steel large basket strainer

Most popular related searches

Agitation: Mechanical agitation 1-3/16 shaft 304 stainless steel.
Pump: 26 gpm diaphragms COMET 101 at 720 psi.
Gearbox: BIMA M-55 with neutral position.
Frame Size: 5x3x1/4 rectangular tubing.
Hub and Spindles: 10,000 lbs rated.
Tire Size: 12.5L 16 flotation, 12 ply.
Fan: 32 steel 8 blades. Air velocity gearbox at 2400 rpm. Approximately 140 mph.
Fan Housing: Is all stainless steel material. Air vanes are stainless steel and 30 total spray tips.
Filters: 2” suction and 2-1” discharge.
Controls: Morris type cable controls. Each side is independent.
Length: 13’ overall hitch to rear. width is 68” and height is 60
Weight: 1900 lbs (empty)
Tractor HP: Required is 70.

Specifications
