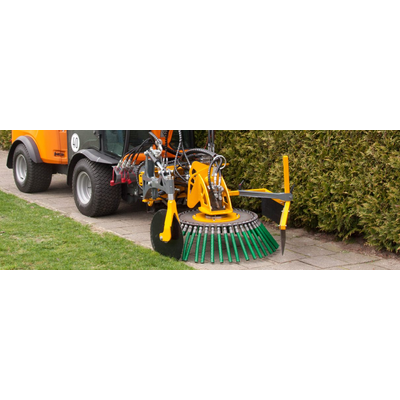

Becx - Model OBKS90-45 - Weed Brush Edge Cutter
The OBKS90-45 is a superb, complete machine for professional users. The operator can control all rotation and swivel functions from his cabin. This range of configuration possibilities improves the number of meters that can be brushed and cut each day. Because the brush and blade can be configured from inside the cabin, this machine is able to trim most grass verges and brush most surfaces. It is also possible to fully withdraw the blade, thus allowing only brushing activities to be carried out. If the tool carrier does not have enough hydraulic functions, Becx Machines is able to offer various solutions.
ENVIRONMENT
Unlike many weed control machines, the OBKS90-45 does not use toxic substances or extra diesel when boiling water. The OBKS90-45 works via the hydraulics of the tool carrier and is thus a perfect future-oriented solution when it comes to large-scale, sustainable and safe weed control. An extra-large weed brush, with many bristles, has been developed to prevent damage to brushed surfaces. This brush offers excellent results at low revs!
BLADE
Both the height and width of the trimming arm can be adjusted. Both settings feature pressure regulated valves, which prevent the blade from moving into unwanted positions. The blade controls also feature two accumulators that allow the blade to deviate if excessive pressure is encountered. A clearly visible pressure meter allows the operator to keep a close eye on the pressure.
CHOOSE THIS GRASS TRIMMER/WEED BRUSH
- Cost-efficient for customers due to the combined trimming and brushing process
- Minimum damage to surface due to use of a large brush
- Very low noise levels
- Brush arm hydraulically adjustable in all directions
- Blade hydraulically adjustable in height and width
- Blade arm features hydraulic pressure-regulated valves
- Suitable as weed brush when blade withdrawn
- Can be mounted on almost all tool-carrier, tractor or loader brands
- Type: OBKS90-45
- Brush diameter: 90 cm
- Blade diameter: 45 cm
- Weight: 306 kg
- Required oil supply: 20 – 60 liter / minute
- Required double hydraulic functions: 3
- Required 12 volt. connection: 2
- Min. – Max. oil pressure: 180 – 200 bar
The OBKS90-45 is supplied with two pressure-regulated valves on brush-head cylinders as standard.
- Available without edge trimmers; see OB90
- Segment brush, available in metal as well as plastic
- Switchover function, to reverse rotational direction
- Machine can also be fitted with a trimming arm on the left-hand side
