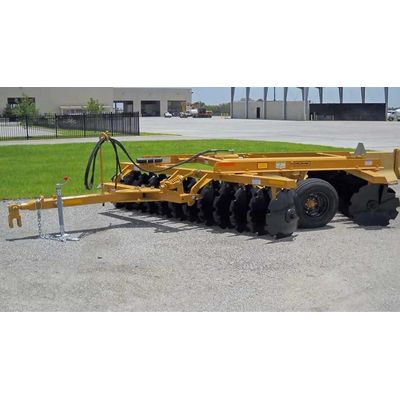

Model TCW Series - Wheel Offset Disk Harrow
For use with tractors in the 30 – 114hp range.
Most popular related searches
offset disc harrow
wheel offset disc harrow
disc harrow
tillage machine
harrow
tractor
tillage
tillage disc
- 24” (610mm) diameter x 1/4” (6mm) thick, cutout (notched) deep concavity disk blades.
- Adjustable disk blade scrapers.
- Heat treated alloy steel gang axles.
- Heavy duty cast steel spacer spools.
- Heavy duty bearing wear plates.
- New industrial tires – 2 each. TCW-16 thru TCW-24: 12.5L x 15 – 12 ply. TCW-28 and TCW-32: 7.5 x 16 – 12 ply. TCW-36 and TCW-40: 12.5L x 15 – 12 ply.
- Hydraulic control group includes cylinders, hose holders, and hoses with fittings to reach rear of tractor.
- Two heavy duty gang wrenches.
- Drawbar jack stand and safety chain.
- 26” (660mm) diameter x 1/4” (6mm) thick, cutout (notched) deep concavity disk blades.
- Cylinder rod stops for positive depth control adjustment.
- Drawbar clevis for track type tractors
