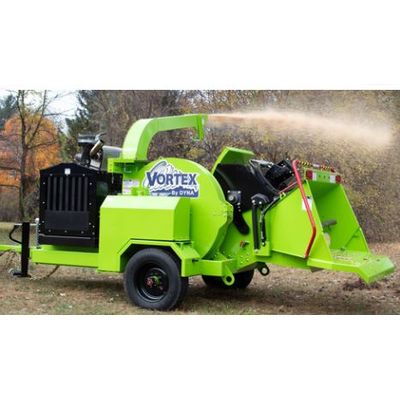

Dyna - Model Vortex V18-32 - Wood Chipper
Because of the design characteristics of the patented VORTEX chamber, the V18-32 has more capacity than any other chipper in the 18 inch class. While most chippers in this class have openings 18 inches high and from 15 inches to 20 inches wide, the VORTEX V18-32 has an opening of 18 inches high by 32 inches wide …. 50% to 100% bigger. This makes it suitable for multiple markets others can’t handle. Tree care, municipalities, utility line maintenance, golf course management, and even light land clearing are all better suited to the VORTEX V18-32 than others in its class.
- Patented Vortex Chamber
- Reverse Pivot Feed System
- 18 inch by 32 inch Opening
- Hand Fed or Machine Fed
- John Deere Diesel and PSI Gas Options
Hand fed or machine fed, the “oversized” opening makes feeding and operating best in class. While operators of other brands must “cut to the opening”, VORTEX® V18-32 operators can process limbs, branches, and even small whole trees as-is, bringing truth to the statement of “less trim time” that others claim.
Add in the revolutionary skinless no-pocket drum, you have the highest capacity, most productive machine in the 18-inch class available in today’s market.
- Vortex No Pocket Drum
- Patented Vortex Chamber
- 44-inch discharge impeller
- Reverse Pivot Feed System
- 18 inch by 32 inch Opening
- Hand Fed or Machine Fed
- Diesel or Gas Power
- Hydraulic Winch
- Bump Bar Tailgate
- Brush Buddy Pusher Kit
- Traffic Cone Kit
- Spare Tire Kit
- In Feed Curtain Kit
- Engine : 173 HP John Deere Diesel, 247 HP PSI Gas, and 174 HP PSI Gas Options.
- Cutting Drum : 30″ diameter x 32″ long, open face, no pockets
- Discharge Impeller : 44″ diameter x 3/8″ thick
- Feed Wheel : (1) 24″ diameter x 31″ wide, reverse pivot system
- Throat Opening : 32″ wide by 18″ high
- Axle : 12,000 lb. Torflex
- Tires : ST235/75/R17.5 J Rated (18 Ply Wheel) mounted on 8-bolt rim
- Hitch : Pintle Ring
- Paint : Painted with PPG safety fluorescent green
- Weight : 9,500 lbs (Approx)
