- Side Hydraulic Weeder Machine

From

The side hydraulic hoe weeder machine ZOFIA is designed for mechanical weed control with crops growing in rows at a spacing to allow the tractor to pass on a cultivated lane. This reduces the cost of weed control, maintenance and facilitates keeping these crops. The hydraulic weeder machine is perfect for controling weeds in organic orchards of fruit trees, It can also be used to control weeds in plantations of berry bushes, vegetable plants, fruit nurseries and others. Can significantly reduce or even eliminate the use of herbicides in the orchard and fruit plantations.

  • The side hydraulic weeder has many features as the hydraulically adjustable width for use in crops with different row widths. Depending on the plantation, weed size or soil hardness.

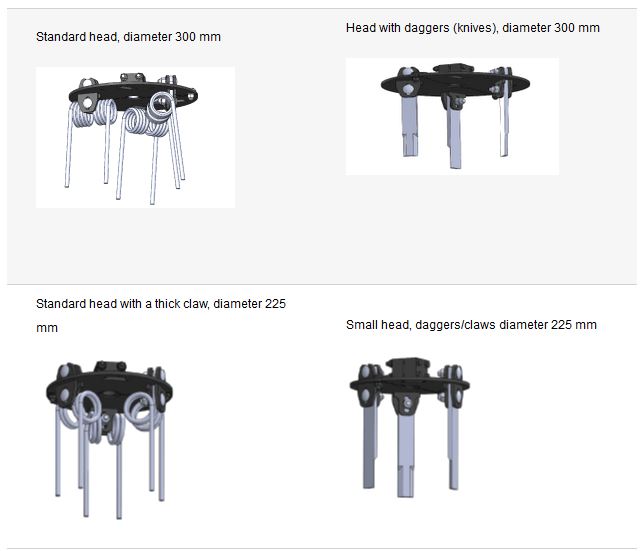

  • Several types of cutting heads can be used in the machine, the heads have three pairs of spring claw (or/and vertical knives) that destroy weeds.
  • As a result, the working depth is set by changing the relative position of the head and the support plate, which copies the area.
  • The operator who sits on the device controls the operation of rotating heads via the mobile arm.
  • The device is equipped with a valve regulating the speed of the heads.
  • The side hydraulic weeder machine is mounted on the back of the tractor and it is powered by the tractor’s hydraulics.
  • The possibility of shifting the axle of the tractor to the right or to the left by approx 50 cm.

  • Length: 1 450 mm
  • Width: 2 400 mm
  • Height: 1 200 mm

  • The method of attachment: Three-point suspension system – the rear of the tractor
  • Drive: Tractor’s hydraulics   (working unit -hydraulic motors)
  • Oil demand: 20 lt/min
  • Diameter of the cutting head: 300 mm (200 mm)
  • Number of operators: 2 + tractor operator
  • Working speed: Up 3 km/h
  • Driving speed: 20 km/h
  •  Max working width: 4 000 mm
  • Min working width: 2 500 mm
  • Transport width: 2 400 mm
  • Length: 1 450 mm
  • Height: 1 200 mm
  • Weight: 320 kg
